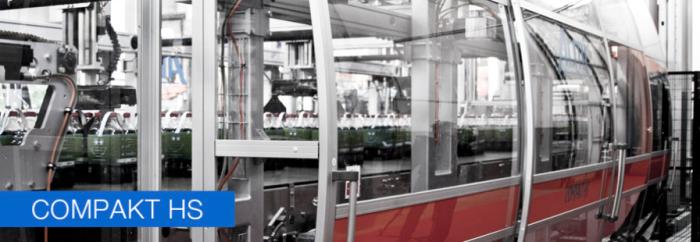

Compakt HS: ACMI's unique, fast "low level infeed" palletiser

15 Feb 2016
ACMI

ACMI presents a new end of line concept that includes a low level infeed palletiser able to reach more than 520 layers per hour with any type of product and with the insertion of interlayers. This innovative palletiser is called Compakt HS.

It is a palletisation system which integrates in a single "low level infeed" structure all the functions of a high speed palletiser. ACMI managed to apply its own management technology of the interlayers of fast "Faster" high level infeed palletisers to this innovative palletiser that achieves high performance without the need to be placed on a platform. Compakt HS has the following advantages:

520 layers/hour with the application of the interlayer
Ultrafast machine in a small space
"Low level infeed" structure, greater accessibility
Great adaptability
Elimination of the platform and relative pack elevators
Simplified maintenance operations
Energy saving
High efficiency

Compakt HS belongs to the Italian company's high speed palletiser series of machinery. The category of high speed palletisers is divided into two main series characterized by a high or low level product infeed. As a low level infeed model, Compakt HS is designed with a double mobile platform system whereby the compact palletiser is fed by the two or three module Twisterbox system:
