If you don’t want to compromise when it comes to your product’s packaging, the FFS-A is your perfect solution. We offer you more than 350 different modules to choose from – so you can combine exactly those units that match your requirements for a highly specific facility.
When it comes to size, working direction or dimensions, your options are almost unlimited. We do not only offer modification,but also new development of the modules you require.

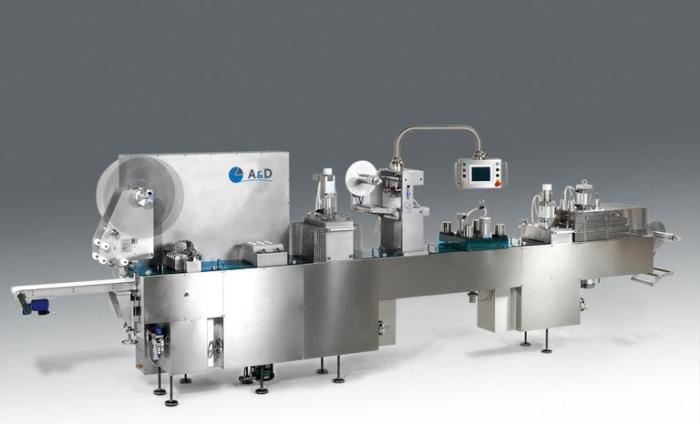

The FFS-A’s cast aluminium frame clad with stainless steel increases the machine’s stability and allows a safe mounting of feed units.
Versions
- BASIC EQUIPMENT
Even in the basic edition, the FFS-A offers a very high standard. - OPTIONAL EQUIPMENT
With more than 350 modules available, a complete and custom-made packaging line can be configured.
Technical data
- Frame: Aluminium
- Cover panel: Stainless steel
- Film widths: 110 – 600 mm (5 mm gradation)
- Repeat length: 60 – 1200 mm
- Deep-draw: up to 120 mm
- Film material: hard and flexible film
Basic Equipment
- Control unit: Siemens S7
- Operator panel: Pro-Face TFT Touch Panel 7,5‘‘
- Pneumatic system: Festo
- Film transportation: two-way clamping chain 5,8“
- Lower film reception: Ø 600 mm
- Upper film reception: Ø 400 mm
- Lifting station: pneumatic with bell-crank lever
- Transverse and longitudinal cutting
- Strip scrap: rewind with diagnostic error system
Peripheral Equipment
- Advance warning film end
- Film end recognition
- Splice recognition
- Print mark control outer web
- Cut and splice table
- Multi-foil heating
- Positive shaping
- Stamp pre-stretch
- Printer for top web printing
- Vacuum and gas supply panel
- Take-Off sealing station
- Cutting station
- Automatic product infeed
- Filler for liquid and pasty products
- Automatic packaging re-stacker
Options
- Alternative control
- Alternative operator panel
- Knee-free loading zone
- Final packaging solutions
- Integration into production systems
- Interface coordination
