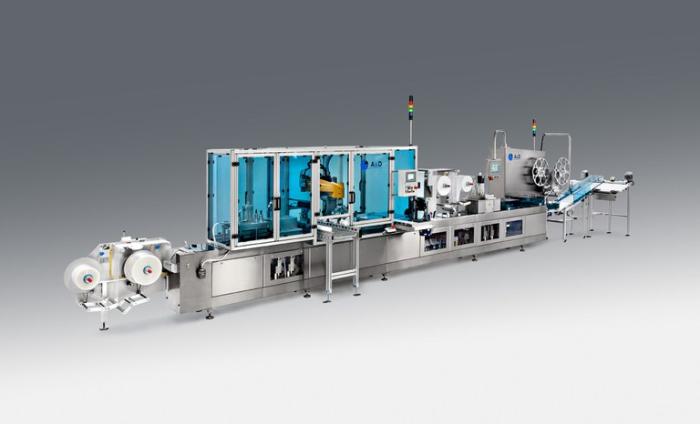

The FFS-S is a thermoform machine fulfilling highest demands as well as accounting for a great variety of customer requirements.
The FFS-S is equipped with highest-quality components even in its basic configuration. Its frame’s stability is preeminent, providing the basis for a durable machine.
Versions
- According to your requirements, the FFS-S can be supplemented by numerous stations. Jumbo-rolls receiver, cutting and splicing tables and a multitude of cleaning, cutting and packing devices make the FFS-S a real all-round talent.
Technical data
- Frame: Stainless steel
- Cover panel: Stainless steel
- Film widths: 185 – 600 mm (5 mm gradation)
- Repeat length: 60 – 1200 mm
- Deep-draw: up to 190 mm
- Film material: hard and flexible film
Basic Equipment
- Control unit: Siemens S7
- Operator panel: Pro-Face TFT Touch Panel 7,5‘‘
- Pneumatic system: Festo
- Film transportation: two-way clamping chain 5,8“
- Lower film reception: Ø 600 mm
- Upper film reception: Ø 400 mm
- Lifting station: pneumatic with bell-crank lever
- Transverse and longitudinal cutting
- Strip scrap: rewind with diagnostic error system
Peripheral Equipment
- Advance warning film end
- Film end recognition
- Splice recognition
- Print mark control outer web
- Cut and splice table
- Multi-foil heating
- Positive shaping
- Stamp pre-stretch
- Printer for top web printing
- Vacuum and gas supply panel
- Take-Off sealing station
- Cutting station
- Automatic product infeed
- Filler for liquid and pasty products
- Automatic packaging re-stacker
- Lifting stations: pneumatic, pneumo-hydraulic, electromechanic, etc.
Options
- Alternative control
- Alternative operator panel
- Knee-free loading zone
- Final packaging solutions
- Integration into production systems
- Interface coordination
