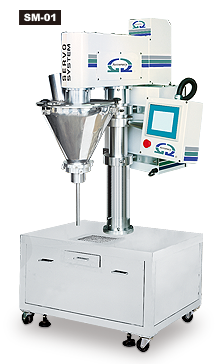

SM-01

Semi-auto Auger Type Powder Metering Filling Machine (Small Model)

Applications:

• Designed for filling and metering various powder and granular products, such as flour, crude sugar, seasoning flavor, salt, MSG, chemical powder, medicine and Chinese herbs powder and biological powder, etc.
• Range of filling and metering: 1-50g.

Features:

• The SM-01 auger type metering filling machine are suitable for all types of free-flow and non free-flow powder and granular products.
• The transmission system is driven by a servo motor.
• Touch-sensing screen for operation control.
• Japan Mitsubishi PLC.
• Auger pipe for material infeed is one-piece manufactured from stainless steel.
• Easy to install and dismantle the auger without need of any tool. Easy and convenient cleaning for time-saving.
• In case malfunction occurs, the machine stops automatically for protection.
• 20 sets of memory modules.

Specifications :

• Machine Size L: 800mm / W: 600mm / H: 1700mm
• Machine Weight 120 kg
• Power Required 220V, 3Ø, 1.5HP, 50/60Hz
• Loading Capacity of Material Tank 14L, Available to Connect with a Material Supply System.
