Adchem 654T Double-Coated Tissue Tape

    Quick ContactPrint
    Adchem 654T Double-Coated Tissue Tape

    Meets various automotive specifications - contact Berry for details.

    Files

    Global

    Standardized Name
    Adchem 654T Double-Coated Tissue Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Automotive Tape
        • Attachment Part Mounting
          • Exterior & Interior Trim
            • Interior Foam & Fiber Bonding
            • Specialty/Converter Tape
              • Foam Bonding Tape
            Brands
            • HHS
              • Adchem
              Brand URL
              http://adchem.com/main/home.aspx
              Markets
              • Shipping & Transportation
                • Automotive
                • Specialty Other
                  • Custom Converting
                  Capabilities
                  • Manufacturing
                    • Tapes Manufacturing
                      • Adhesive Coating
                    Country Serviced / Available In
                    • Global
                      Features / Benefits
                      • Acrylic Adhesive
                        • Quick initial tack
                        • Low fogging, low flammability
                        • High peel and shear properties
                        • Excellent high and low temperature performance
                      • Tissue Supported
                        • Facilitates clean die-cuts
                      • 74# Kraft Liner
                        • Conformable and good dimensional stability
                      End Use / Recommended Applications
                      Automotive interior applications. Insulation. Foam-to-foam or foam-to-plastic bonding. LSE and Low VOC. Headliners. Panel electronics. Substrates including ABS, TPO, powder coated paints, PE, PP, and foams.

                      Spec

                      + Global

                      Berry Catalog SKU
                      654T
                      Sample Request AvailableNo

                      + Physical Properties

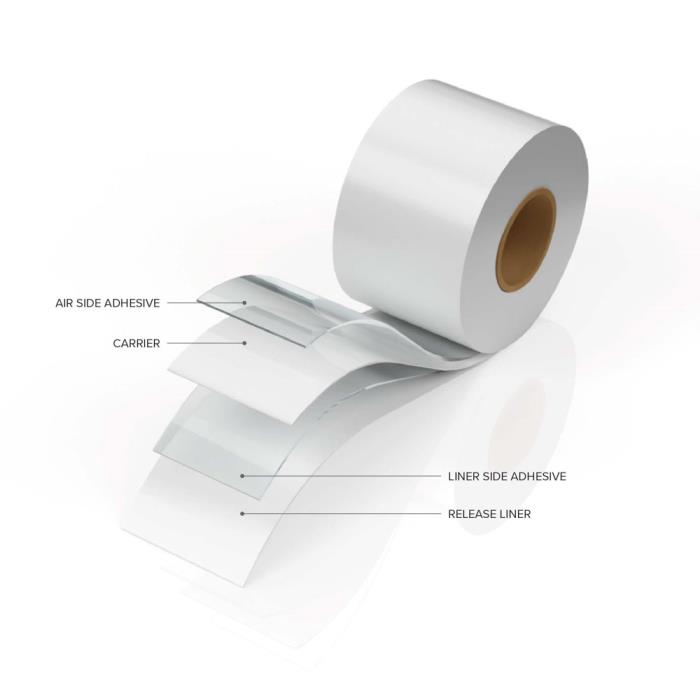

                      Product ConstructionDouble-Coated Tape
                      Color(s)White

                      + Packaging Data

                      Max Temp Range302-392 °F

                      + Non-Packaging Data

                      OEM / Specification Body & Specification
                      • Chrysler
                        • FCA MS.90075
                          • FCA PF-10770
                          • Ford
                            • ESA-M11P19-A
                              • ESB-M11P8-A
                                • ESB-M3G76-B2
                                  • WSS-M11P62-A
                                    • WSS-M99P48-A3
                                    • General Motors
                                      • GMW14892
                                        • GMW16443 Type 1
                                          • GMW16443 Type 2
                                          • Nissan
                                            • NES M 8506
                                            • Toyota
                                              • TSK5702G
                                                • TSK6505G
                                                Gauge / Mil
                                                5.0 mil
                                                Gauge/Thickness Range3.1 mils to 5.0 mils
                                                Carrier / Support / FacestockTissue
                                                Adhesive TypeAcrylic
                                                Adhesive Type (Liner Side)Acrylic
                                                Liner TypePolycoated Paper
                                                Operating Temp Range
                                                -30 to 375 °F
                                                Performance Category / Characteristics
                                                • Low VOC

                                                  + CPNA

                                                  Application
                                                  Automotive interior applications. Insulation, headliners, and panel electronics. Low surface energy and Low VOC bonding. Substrates including ABS, TPO, powder coated paints, PE, PP, and foams.
                                                  Brand
                                                  Adchem
                                                  Carrier
                                                  Tissue
                                                  Construction
                                                  Double Coated
                                                  Features
                                                  Quick initial tack with high peel and shear strength. Tissue carrier facilitates die cuts. Excellent high and low temperature performance. Bonds well to low surface energy materials. Low fogging. Ideal for low VOC applications.
                                                  Laminating Adhesive Description
                                                  Acrylic
                                                  Laminating Thickness
                                                  5.0 mil (Adhesive and Carrier)
                                                  Liner
                                                  74# polycoated kraft
