    Adchem 4787M Double-Coated Tape

    Adchem 4787M Double-Coated Tape provides conformability and exceptional peel strength when used for applications such as bonding to a broad variety of substrates.

    Files

    Global

    Standardized Name
    Adchem 4787M Double-Coated Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Specialty/Converter Tape
        • Foam Bonding Tape
          • Gasket Sealing Tape
            • Assembly & Attachment Tape
          Brands
          • HHS
            • Adchem
            Brand URL
            http://adchem.com/main/home.aspx
            Markets
            • Specialty Other
              • Custom Converting
              Capabilities
              • Manufacturing
                • Tapes Manufacturing
                  • Adhesive Coating
                Country Serviced / Available In
                • Global
                  Features / Benefits
                  • Rubber-Based Adhesive
                    • Exceptional peel strength
                    • High tack and good shear properties
                  • Polyester Film Carrier
                    • Support for aid in processing and application
                    • Conformable
                  • 74# Kraft Liner
                    • Conformable and good dimensional stability
                  End Use / Recommended Applications
                  Extremely aggressive for bonding to a broad variety of substrates.

                  Spec

                  + Global

                  Berry Catalog SKU
                  4787M
                  Sample Request AvailableNo

                  + Physical Properties

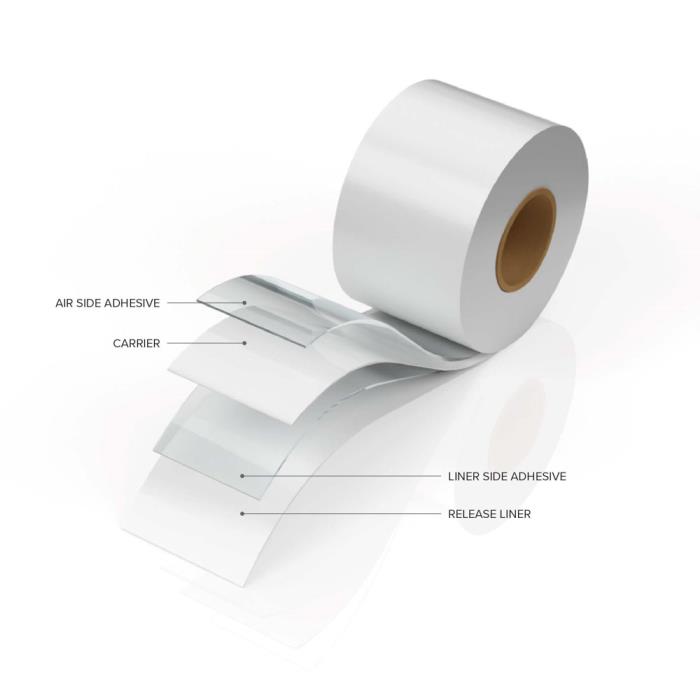

                  Product ConstructionDouble-Coated Tape
                  Color(s)Clear

                  + Packaging Data

                  Max Temp Range<176 °F

                  + Non-Packaging Data

                  Gauge / Mil
                  11.0 mil
                  Gauge/Thickness Range9.1 mils to 13.0 mils
                  Carrier / Support / FacestockPET (Polyester) Film
                  Carrier Thickness (mil)
                  0.5 mil
                  Adhesive TypeRubber
                  Adhesive Type (Liner Side)Rubber
                  Liner TypePolycoated Paper
                  Operating Temp Range
                  30 to 150 °F

                  + CPNA

                  Application
                  Extremely aggressive double-sided tape for bonding to a broad variety of substrates.
                  Brand
                  Adchem
                  Carrier
                  0.5 mil PET Film
                  Construction
                  Double Coated
                  Features
                  Exceptional peel strength. High tack and good shear.
                  Laminating Adhesive Description
                  Rubber
                  Laminating Thickness
                  2.5 mil
                  Liner
                  74# polycoated kraft
                  Liner Thickness
                  2.5 mil
