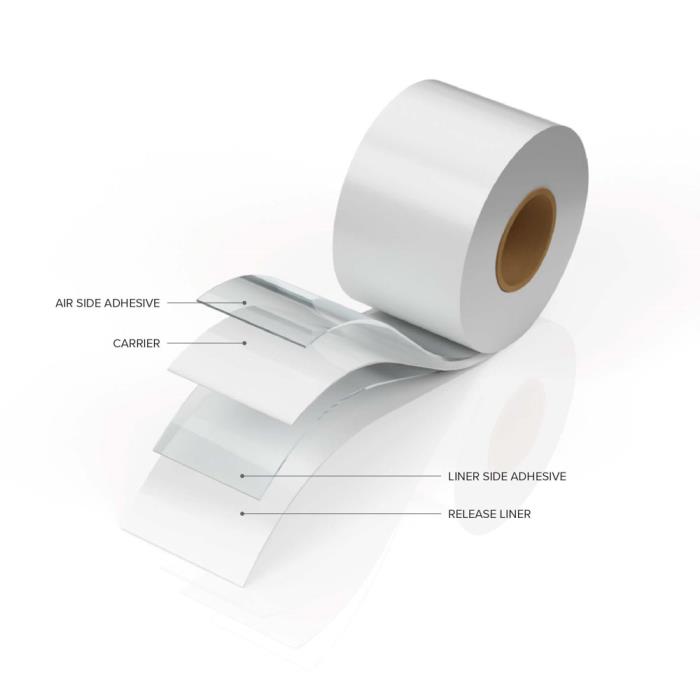

Adchem 5000M Double-Coated Tape

    Quick ContactPrint
    Adchem 5000M Double-Coated Tape

    Available with 12pt board, 74# polycoated kraft, or 80# polycoated kraft liner.

    Files

    Global

    Standardized Name
    Adchem 5000M Double-Coated Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Automotive Tape
        • Attachment Part Mounting
          • Exterior & Interior Trim
            • Interior Foam & Fiber Bonding
            • Specialty/Converter Tape
              • Foam Bonding Tape
            Brands
            • HHS
              • Adchem
              Brand URL
              http://adchem.com/main/home.aspx
              Markets
              • Shipping & Transportation
                • Automotive
                • Specialty Other
                  • Custom Converting
                  Capabilities
                  • Manufacturing
                    • Tapes Manufacturing
                      • Adhesive Coating
                    Country Serviced / Available In
                    • Global
                      Features / Benefits
                      • Differential Rubber Adhesive System
                        • Air-side offers exceptional high tack
                        • Liner-side well-suited for general purpose use
                      • Polyester Film Carrier
                        • Support for aid in processing and application
                        • Conformable
                      • Kraft Liner
                        • Conformable and good dimensional stability
                      End Use / Recommended Applications
                      Bonding to a wide variety of PU and PE foams, felt, cork, rubber, and sponge materials. Splicing applications. Weatherstripping. General purpose bonding uses. Gasket, insulation, light shielding, and sound damping uses.

                      Spec

                      + Global

                      Berry Catalog SKU
                      5000M
                      Sample Request AvailableNo

                      + Physical Properties

                      Product ConstructionDouble-Coated Tape
                      Color(s)Clear

                      + Packaging Data

                      Max Temp Range<176 °F

                      + Non-Packaging Data

                      OEM / Specification Body & Specification
                      • Chrysler
                        • FCA MS.90075
                          • FCA PF-10770
                          • Ford
                            • ESA-M11P19-A
                              • ESB-M11P8-A
                                • ESB-M3G76-B2
                                • General Motors
                                  • GMW16443 Type 1
                                    • GMW16443 Type 2
                                    Gauge / Mil
                                    7.7 mil
                                    Gauge/Thickness Range5.1 mils to 9.0 mils
                                    Carrier / Support / FacestockPET (Polyester) Film
                                    Carrier Thickness (mil)
                                    0.5 mil
                                    Adhesive TypeRubber
                                    Adhesive Type (Liner Side)Rubber
                                    Liner TypeFilm
                                    Operating Temp Range
                                    30 to 150 °F

                                    + CPNA

                                    Application
                                    Bonding to a wide variety of PU and PE foams, felt, cork, rubber, and sponge materials. Splicing applications. Weatherstripping. Gasket, insulation, light shielding, and sound damping. General purpose bonding uses.
                                    Brand
                                    Adchem
                                    Carrier
                                    0.5 mil PET Film
                                    Construction
                                    Double Coated
                                    Features
                                    Air-side adhesive offers exceptional high tack. Liner-side adhesive ideal for general bonding. Multiple liner options.
                                    Laminating Adhesive Description
                                    Rubber
                                    Laminating Thickness
                                    1.4 mil
                                    Liner Thickness
                                    1.3 mil

                                    See also

                                    Adchem 156M Double-Coated PET Film Tape

                                    Adchem 156M Double-Coated PET Film Tape provides conformability when used for applications such as bonding and laminating to a wide variety of cloths, vinyls, corks, paper, rigid and flexible plastics. For mounting displays, signs, posters, mirrors, nameplates, and decorative wall products. Especially suited for splicing various types of paper products. Applications where resistance to ultra-violet light and excellent performance during temperature extremes is required. The 256M also exhibits resistance to some plasticizers.

                                    Adchem EBTB Double-Coated Tape

                                    A 1/32" thick black, 6 lb. density cross linked polyethylene foam coated on both sides with a high performance acrylic adhesive system developed specifically for extreme environmental exposures that does not require silane/isopropanol pre-treatment for adhesion to glass or ceramic surfaces. Provide for long-term indoor and outdoor bonding of glass, ceramics, primed, painted, aluminum and plastic surfaces without silane/isopropanol pre- wash. The double-coated tape was engineered specifically for resistance to air, water, detergents, moisture, light and dust penetration. Foam is also used to fill any irregularities and functionally provide cushioning, absorb vibration and shock, and allow for expansion and contraction due to temperature variations. See associated sheets for specific testing and performance data.
