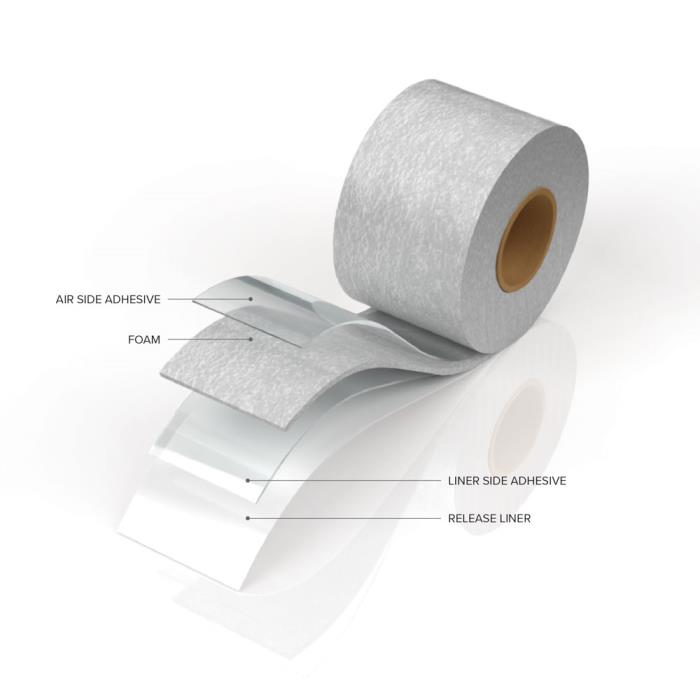

Polyken 2211E Double-Coated Medical Foam Tape (1/16") OBS

    Double-Coated Medical Foam Tape for ECG, EKG, TENS and other electrode uses.

    Global

    Standardized Name
    Polyken 2211E Double-Coated Medical Foam Tape (1/16")
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Medical Tape
        • Diagnostics Tape
          • Medical Device Assembly Tape
            • Wearable Device Tape
          Brands
          • HHS
            • Polyken
            Markets
            • Healthcare
              • Diagnostic
                • Medical Components
                Capabilities
                • Manufacturing
                  • Tapes Manufacturing
                    • Adhesive Coating
                  Country Serviced / Available In
                  • Global
                    Features / Benefits
                    • Foam Carrier
                      • Soft and flexible for maximum patient comfort
                      • Conformable and easily adapts to medical devices and body contours
                    • Non-Sensitizing Acrylic Adhesive
                      • High tack and good shear strength
                      • Stable to EtO and gamma sterilization
                    • 96lb Release Liner
                      • Easy to die-cut and process
                      • Good dimensional stability and lay flat
                    End Use / Recommended Applications
                    Electrodes: ECG, EKG, TENS. Medical device assembly and attachment.

                    + Global

                    Berry Catalog SKU
                    2211E
                    Sample Request AvailableNo

                    + Physical Properties

                    Product ConstructionDouble-Coated Tape
                    Color(s)White

                    + Non-Packaging Data

                    Gauge / Mil
                    72.3 mil
                    Gauge/Thickness Range>13.0 mils
                    Carrier / Support / FacestockFoam
                    Carrier Thickness (mil)
                    62.5 mil
                    Adhesive TypeAcrylic
                    Air-Side Adhesive Thickness (mil)
                    1.4 mil
                    Adhesive Type (Liner Side)Acrylic
                    Liner Side Adhesive Thickness (mil)
                    1.4 mil
                    Liner TypePaper
                    Peel Strength / Adhesion to Steel
                    200 oz/in
                    Peel Strength / Adhesion to Steel (Liner Side)
                    200 oz/in
                    Medical Wear DurationMedium Wear 3-5 days

                    + Markets and Manufacturing Data

                    MarketHealth
                    Market - SegmentMedical, Diagnostics

                    + CPNA

                    Adhesive
                    Acrylic - Non-Sensitizing
                    Application
                    Electrodes: ECG, EKG, TENS. Medical device assembly. Medical device attachment.
                    Brand
                    Polyken
                    Carrier
                    PE Foam
                    Carrier Thickness
                    1/16 in
                    Construction
                    Single Coated with Liner
                    Features
                    Soft, flexible foam offers maximum patient comfort. Conformable to easily adapt to medical devices and body contours. High tack adhesive has good shear to support a wide variety of applications. Stable to EtO and gamma sterilization.
                    Liner
                    76 # Polycoated Kraft
