Polyken 9254M Medical Double-Coated Tape

    Quick ContactPrint
    Polyken 9254M Medical Double-Coated Tape

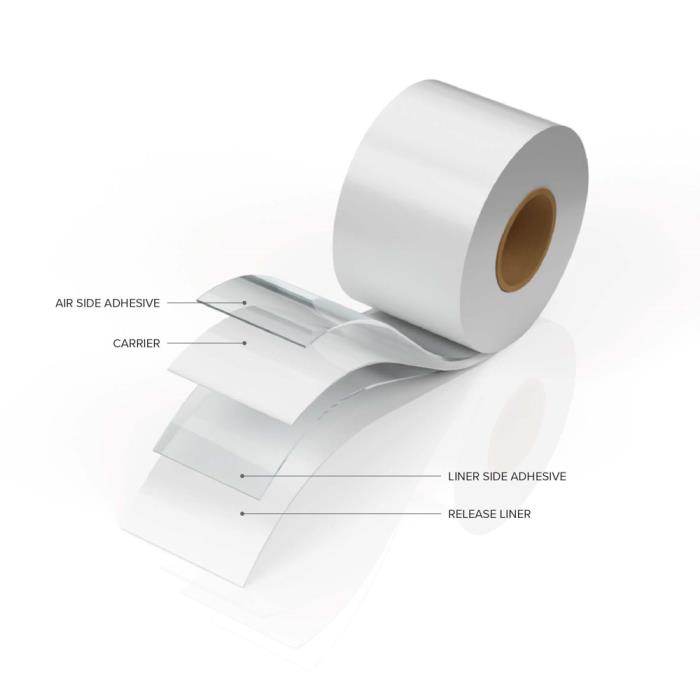

    Polyken 9254M Medical Double-Coated Tape is a high tack, moderate dead load acrylic adhesive film coated 1.3 mils on both sides of a high quality polyester film. This product exhibits all the positive results associated with a high quality, general purpose acrylic system with exceptionally high peel and shear properties and high initial tack. 9254M has excellent resistance to high temperatures, steam autoclaving, sterilization by gamma ray, E.O., chemical plasma or chemical vapor. Adhesion is excellent to a wide variety of surfaces, such as papers, rigid and flexible plastics, nonwovens, or foams. Excellent short and long term skin adhesion

    Files

    Global

    Standardized Name
    Polyken 9254M Medical Double-Coated Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Medical Tape
        • Medical Device Assembly Tape
          • Protective Care & Safety Tape
            • Wearable Device Tape
          Brands
          • HHS
            • Polyken
            Brand URL
            https://www.adchem.com/main/products/9254m5554-100
            Markets
            • Healthcare
              • Medical Components
              • Specialty Other
                • Custom Converting
                Capabilities
                • Manufacturing
                  • Tapes Manufacturing
                    • Adhesive Coating
                  Country Serviced / Available In
                  • Global
                    Features / Benefits
                    • Acrylic Adhesive
                      • High peel and high tack
                      • Bonds to a variety of substrates
                      • Die-cuts cleanly
                    • Polyester Film Carrier
                      • Support for aid in processing and application
                      • Conformable
                    • 74# Polycoated Kraft Liner
                      • Good lay-flat; moisture resistant
                    End Use / Recommended Applications
                    Lamination and bonding to papers, rigid and flexible plastics, non-wovens, and foams. Medical device attachment and assembly.

                    Spec

                    + Global

                    Berry Catalog SKU
                    9254M
                    Sample Request AvailableNo

                    + Physical Properties

                    Product ConstructionDouble-Coated Tape
                    Color(s)Clear

                    + Packaging Data

                    Max Temp Range212-257 °F

                    + Non-Packaging Data

                    Gauge / Mil
                    8.6 mil
                    Gauge/Thickness Range5.1 mils to 9.0 mils
                    Carrier / Support / FacestockPET (Polyester) Film
                    Carrier Thickness (mil)
                    0.5 mil
                    Adhesive TypeAcrylic
                    Air-Side Adhesive Thickness (mil)
                    1.3
                    Adhesive Type (Liner Side)Acrylic
                    Liner Side Adhesive Thickness (mil)
                    1.3
                    Liner TypeCoated Kraft Paper
                    Peel Strength / Adhesion to Steel
                    44 oz/in
                    Peel Strength / Adhesion to Steel (Liner Side)
                    44 oz/in
                    Operating Temp Range
                    -30 to 220 °F
                    Performance Category / Characteristics
                    • Moisture/Water Resistance
                      Medical Wear DurationShort-Term Wear 1-3 days

                      + Markets and Manufacturing Data

                      MarketHealth
                      Market - SegmentMedical, Diagnostics

                      + CPNA

                      Adhesive
                      Acrylic
                      Application
                      Lamination and bonding to papers, rigid and flexible plastics, non-wovens, and foams. Medical device attachment and assembly.
                      Brand
                      Polyken
                      Carrier
                      0.5 mil PET Film
                      Construction
                      Double Coated
                      Features
                      High peel and high tack adhesive bonds to a variety of substrates. Good lay-flat and moisture resistance. Excellent for die-cutting.
                      Laminating Adhesive Description
                      Acrylic - Medical
                      Laminating Thickness
                      1.3 mil
                      Liner
                      55 # SCK
                      Liner Thickness
                      1.3 mil
