Polyken 3573F Double-Coated Medical Mounting Tape

    Quick ContactPrint
    Polyken 3573F Double-Coated Medical Mounting Tape

    Double-Coated Medical Mounting Tape

    Files

    Global

    Standardized Name
    Polyken 3573F Double-Coated Medical Mounting Tape
    Berry Global EntityHHS Tape
    Brands
    • HHS
      • Polyken
      Markets
      • Healthcare
        • Surgical
        • Specialty Other
          • Custom Converting
          Capabilities
          • Manufacturing
            • Tapes Manufacturing
              • Adhesive Coating
            Country Serviced / Available In
            • Global

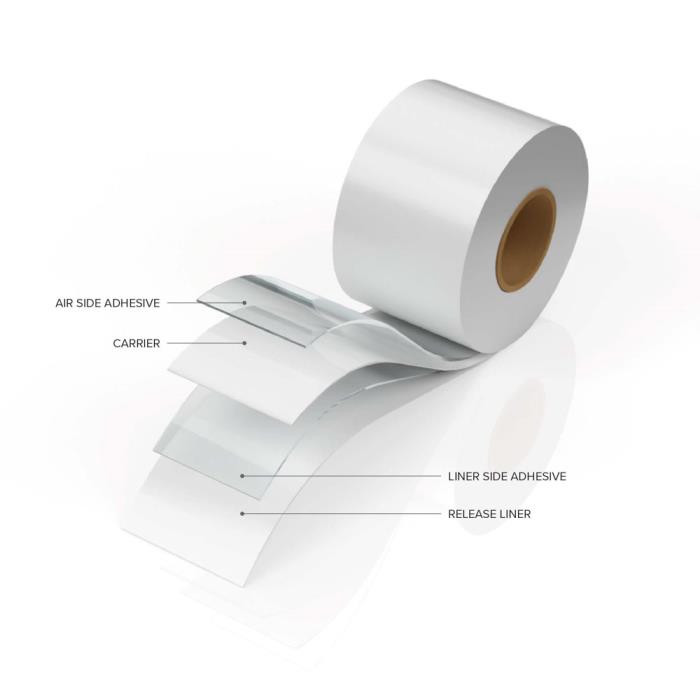

              Features / Benefits
              • Polyester Film Carrier
                • Support for aid in processing and application
                • Easily conforms to various surface types
              • Liner Side Non-Sensitizing Acrylic Adhesive
                • High tack and good shear properties
                • Stable to EtO and gamma sterilization
              • Rubber Based Air-Side Adhesive
                • High shear and good adhesion properties
              • 76lb PC Bleached Kraft Liner
                • Low COF for hand apply applications
                • Good dimensional stability and moisture resistance
              End Use / Recommended Applications
              Surgical drape fabrication and assembly. Medical device attachment. Medical device assembly. Surgical drape attachment: drape to drape, drape to skin.

              Spec

              + Global

              Berry Catalog SKU
              3573F
              Sample Request AvailableNo

              + Physical Properties

              Product ConstructionDouble-Coated Tape
              Color(s)Clear

              + Non-Packaging Data

              Gauge / Mil
              8.8 mil
              Gauge/Thickness Range5.1 mils to 9.0 mils
              Carrier / Support / FacestockPET (Polyester) Film
              Carrier Thickness (mil)
              0.5 mil
              Adhesive TypeRubber
              Adhesive Type (Liner Side)Acrylic
              Liner TypePolycoated Paper
              Performance Category / Characteristics
              • Moisture/Water Resistance

                + Markets and Manufacturing Data

                MarketHealth
                Market - SegmentMedical, Diagnostics

                + CPNA

                Application
                Surgical drape fabrication and assembly. Surgical drape attachment - drape to drape or drape to skin. Medical device assembly and attachment.
                Brand
                Polyken
                Carrier
                0.5 mil PET Film
                Construction
                Double Coated
                Features
                Differential double-coated tape. Acrylic liner-side adhesive offers high tack and good shear properties and is stable to EtO and gamma sterilization. Air-side rubber adhesive offers high shear and good adhesion. 76# Kraft Liner has good dimensional stability and moisture resistance. Low COF for hand application.
                Laminating Adhesive Description
                Rubber
                Laminating Thickness
                1.4 mils
                Liner Thickness
                1.4 mils
