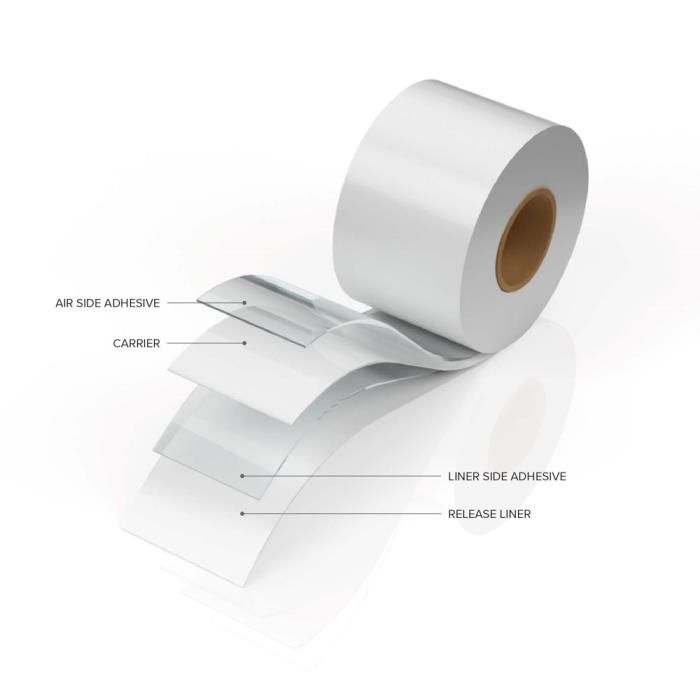

Polyken 3544A Medical-Grade Double-Coated Tape

    Quick ContactPrint
    Polyken 3544A Medical-Grade Double-Coated Tape

    Medical-Grade Double-Coated Tape

    Files

    Global

    Standardized Name
    Polyken 3544A Medical-Grade Double-Coated Tape
    Berry Global EntityHHS Tape
    Brands
    • HHS
      • Polyken
      Markets
      • Healthcare
        • Medical Components
        • Specialty Other
          • Custom Converting
          Capabilities
          • Manufacturing
            • Tapes Manufacturing
              • Adhesive Coating
            Country Serviced / Available In
            • Global
              Features / Benefits
              • Polyethylene Film Carrier
                • Flexible, highly conformable for patient comfort
              • Non-Irritating Acrylic Adhesive - Liner Side
                • High tack and good shear properties
                • Designed to adhere to difficult surfaces
              • Non-Irritating Acrylic Adhesive - Air Side
                • Suitable for long-term wear
                • High adhesion
                • Resists oil migration
              • Differential release liner
                • Easy to die-cut and process
                • Good dimensional stability and lay flat
              End Use / Recommended Applications
              Medical device assembly. Toupee attachment. Medical device attachment.

              Spec

              + Global

              Berry Catalog SKU
              3544A
              Sample Request AvailableNo

              + Physical Properties

              Product ConstructionDouble-Coated Tape
              Color(s)Clear

              + Non-Packaging Data

              Gauge / Mil
              15.6 mil
              Gauge/Thickness Range>13.0 mils
              Carrier / Support / FacestockPE (Polyethylene) Film
              Carrier Thickness (mil)
              3.0 mil
              Adhesive TypeAcrylic
              Adhesive Type (Liner Side)Acrylic
              Liner TypePolycoated Paper
              Medical Wear DurationLong-Term Wear 5 -14 days

              + Markets and Manufacturing Data

              MarketHealth
              Market - SegmentMedical, Diagnostics

              + CPNA

              Application
              Medical device assembly and attachment. Toupee attachment.
              Brand
              Polyken
              Carrier
              Polyethylene
              Carrier Thickness
              3 mil
              Construction
              Double Coated
              Features
              Flexible, conformable PE film carrier for maximum patient comfort. Differential non-irritating acrylic adhesive provides strong shear and high tack on the liner side with high adhesion, oil migration resistance, and long-term wear capability on the air side.
              Laminating Adhesive Description
              Acrylic - Medical
              Laminating Thickness
              3.5
              Liner
              76 # Polycoated Kraft
