Polyken 3586B Double-Coated Medical Tape

    Quick ContactPrint
    Polyken 3586B Double-Coated Medical Tape

    Double-Coated Medical Tape

    Files

    Global

    Standardized Name
    Polyken 3586B Double-Coated Medical Tape
    Berry Global EntityHHS Tape
    Brands
    • HHS
      • Polyken
      Markets
      • Healthcare
        • Surgical
          • Medical Components
          • Specialty Other
            • Custom Converting
            Capabilities
            • Manufacturing
              • Tapes Manufacturing
                • Adhesive Coating
              Country Serviced / Available In
              • Global
                Features / Benefits
                • Polyester Film Carrier
                  • Support for aid in processing and application
                  • Easily conforms to various surface types
                • Non-Sensitizing Acrylic Adhesive
                  • High tack and good shear properties
                  • Stable to EtO and gamma sterilization
                • 60lb Bleached Kraft
                  • Easy liner removal
                End Use / Recommended Applications
                Surgical drape fabrication and assembly. Medical device assembly. Medical device attachment. Surgical drape attachment: drape to drape, drape to skin.

                Spec

                + Global

                Berry Catalog SKU
                3586B
                Sample Request AvailableNo

                + Physical Properties

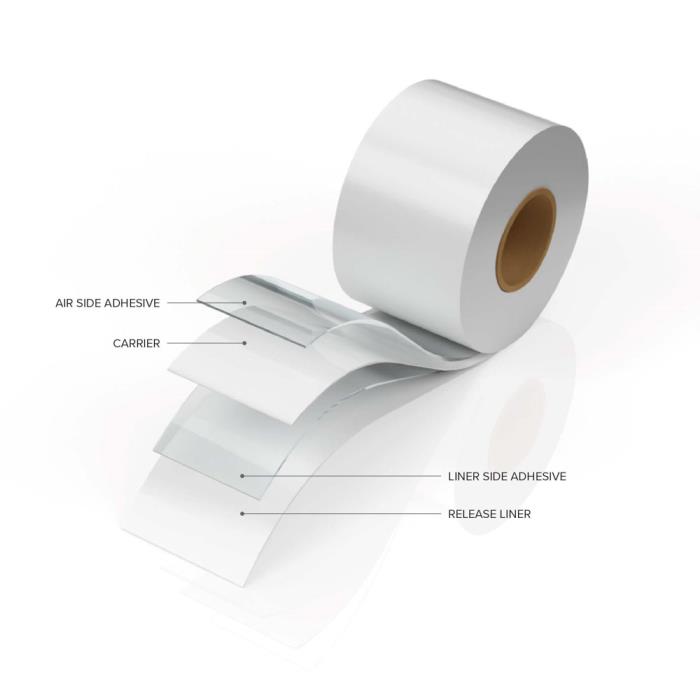

                Product ConstructionDouble-Coated Tape
                Color(s)Clear

                + Non-Packaging Data

                Gauge / Mil
                6.3 mil
                Gauge/Thickness Range5.1 mils to 9.0 mils
                Carrier / Support / FacestockPET (Polyester) Film
                Carrier Thickness (mil)
                0.5 mil
                Adhesive TypeAcrylic
                Air-Side Adhesive Thickness (mil)
                1.2 mil
                Adhesive Type (Liner Side)Acrylic
                Liner Side Adhesive Thickness (mil)
                1.2 mil
                Liner TypePaper
                Peel Strength / Adhesion to Steel
                110 oz/in
                Peel Strength / Adhesion to Steel (Liner Side)
                100 oz/in
                Medical Wear DurationMedium Wear 3-5 days

                + Markets and Manufacturing Data

                MarketHealth
                Market - SegmentMedical, Diagnostics

                + CPNA

                Application
                Surgical drape assembly and fabrication. Surgical drape attachment - drape to drape and drape to skin. Medical device assembly and attachment.
                Brand
                Polyken
                Carrier
                0.5 mil PET Film
                Construction
                Double Coated
                Features
                High tack and good shear properties. Stable to gamma and EtO sterilization. Conformable. Easy-to-use liner.
                Laminating Adhesive Description
                Acrylic - Non-Sensitizing
                Laminating Thickness
                1.2 mils
                Liner
                60# SCK
                Liner Thickness
                3.4 mils
