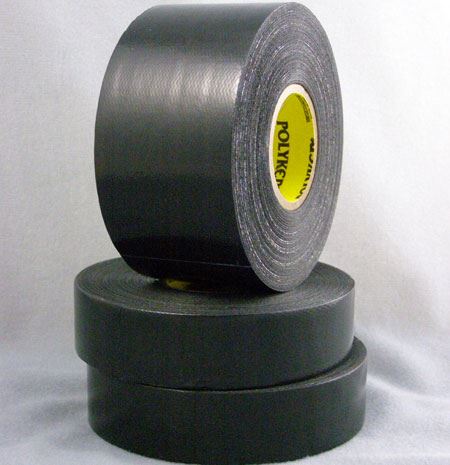

Polyken 518FRA Flame-Retardant Wire Harness Tape

    Quick ContactPrint
    Polyken 518FRA Flame-Retardant Wire Harness Tape

    Meets OEM Specifications

    Global

    Standardized Name
    Polyken 518FR-A Flame-Retardant Wire Harness Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Automotive Tape
        • Wire Harness Tape
      Brands
      • HHS
        • Polyken
        Markets
        • Shipping & Transportation
          • Automotive
          • Specialty Other
            • Appliances
            Capabilities
            • Manufacturing
              • Tapes Manufacturing
                • Calendering
                  • Adhesive Formulation/Mixing
                Country Serviced / Available In
                • Global
                  Features / Benefits

                  Contact Customer Care at 800-343-7875 for more information.

                  End Use / Recommended Applications
                  Splice protection where FR is required. High abrasion applications. Spot taping, clip retention, continuous wrap. Splicing or patching.

                  Spec

                  + Global

                  Berry Catalog SKU
                  518FRA
                  Sample Request AvailableNo

                  + Physical Properties

                  Product ConstructionSingle-Coated Tape
                  Color(s)Black

                  + Non-Packaging Data

                  Gauge / Mil
                  9.0 mil
                  Gauge/Thickness Range5.1 mils to 9.0 mils
                  Carrier / Support / FacestockPE (Polyethylene) Film
                  Adhesive TypeRubber
                  Performance Category / Characteristics
                  • Flame Retardant
                    • Abrasion Resistance

                      + Markets and Manufacturing Data

                      MarketHome Care. Automotive
                      Market - SegmentAutomotive
                      Market - End UseHome Care

                      + CPNA

                      Adhesive
                      Rubber
                      Application
                      Sealing and waterproofing where flame retardancy is a requirement. Bus seat repair where flame retardancy is necessary. Moisture vapor sealing applications.
                      Brand
                      Polyken
                      Carrier
                      Polymeric/Fabric Composite
                      Construction
                      Single Coated
                      Features
                      High grade flame-retardant waterproof tape with a vinyl-coated, black dyed cloth backing. High tack, high adhesion, high tensile strength. Low rate of water vapor transmission. Continuous operating temperature up to 100�°C.
