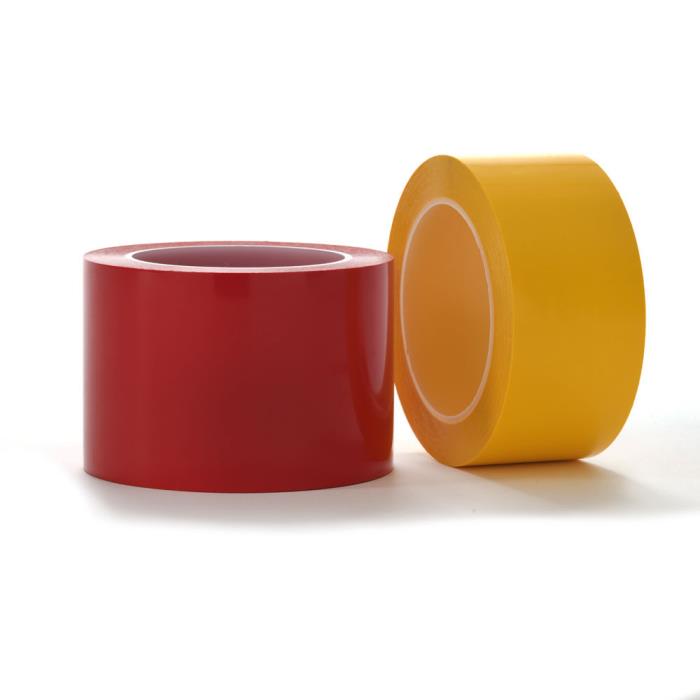

Patco 5030 Static Port Protection Tape

    Quick ContactPrint
    Patco 5030 Static Port Protection Tape

    High Visibility, Residue-Free Static Port Protection Tape

    Files

    Global

    Standardized Name
    Patco 5030 Static Port Protection Tape - 5030
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Aerospace Tape
        • Masking & Surface Protection Tapes
      Brands
      • HHS
        • Patco
        Markets
        • Shipping & Transportation
          • Aerospace
          Capabilities
          • Manufacturing
            • Tapes Manufacturing
              • Adhesive Coating
                • Adhesive Formulation/Mixing
              Country Serviced / Available In
              • Global
                Features / Benefits
                • LDPE Film
                  • Conformable for irregular surfaces
                  • Withstands temporary outdoor exposure
                  • Excellent moisture barrier properties
                • Acrylic Adhesive
                  • Resistant to citrus-based cleaners
                  • Holds up to power washing
                  • UV and solvent resistant
                  • Firm bond with virtually no edge bleed
                  • Will not crack or crease
                  • Excellent high and low temperature performance
                  • Low in halogens and leachable chlorides
                End Use / Recommended Applications
                High visibility masking of critical static ports. Color coding and part marking. Temporary holding and sealing. Temporary outdoor surface protection. Temporary attachment and splicing of masking materials.

                Spec

                + Global

                Berry Catalog SKU
                5030
                Sample Request AvailableNo

                + Physical Properties

                Product ConstructionSingle-Coated Tape
                Color(s)Red. Orange. Yellow

                + Packaging Data

                Max Temp Range176-212 °F

                + Non-Packaging Data

                Gauge / Mil
                5.5 mil
                Gauge/Thickness Range5.1 mils to 9.0 mils
                Carrier / Support / FacestockPE (Polyethylene) Film
                Adhesive TypeAcrylic
                Liner TypeNone
                Tensile Strength
                11 lb/in
                Elongation %
                400%
                Operating Temp Range
                -40 to 190 °F
                Performance Category / Characteristics
                • Environmental Resistance
                  • UV Resistance
                    • Moisture/Water Resistance

                      + CPNA

                      Adhesive
                      Acrylic
                      Application
                      Mask and protect static ports on aircraft during routine maintenance operations. High visibility helps ensure technicians see and remove masking materials prior to releasing the aircraft into operation. Suitable for temporary indoor or outdoor surface protection, color coding and parts marking, temporary holding and sealing, attachment and splicing of masking materials.
                      Brand
                      Patco
                      Carrier
                      Polyethylene
                      Construction
                      Single Coated
