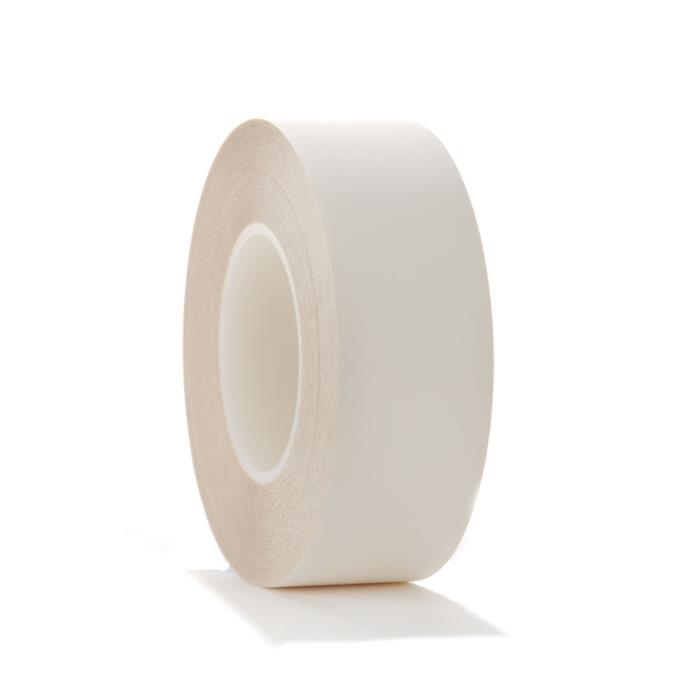

Patco 8275-92 UVProtek Surface Protection Film-8275

Patco 8275-92 UVProtek Surface Protection Film provides excellent aging characteristics when used for applications such as surface protection on high-wear surfaces prone to chipping, scratching, or wearing, long-term protection for marine and or outdoor equipment, protects outdoor plastics and teak furniture, leading edge protection for turbine blades. Clear in color and also available in incremental sizes.

Files

Download file
TDSPatco8275-92_081822

Global
Standardized Name	Patco 8275-92 UVProtek Surface Protection Film
Berry Global Entity	HHS Tape
Products	Tapes & Adhesives Automotive Tape Surface Protection Tape Industrial Tape
Brands	HHS Patco
Markets	Building & Construction Commercial Construction Shipping & Transportation Marine Specialty Other Custom Converting
Capabilities	Manufacturing Tapes Manufacturing Adhesive Coating Adhesive Formulation/Mixing
Country Serviced / Available In	Global
Features / Benefits Polyurethane Film Backing Provides UV protection for outdoor use Abrasion resistant Excellent aging characteristics, non-yellowing Transparent to allow for visual inspection Regenerative UV Acrylic Strong permanent bond Removes clean from most surfaces Will not lift, stain, or dry out Kraft Paper Release Liner Smooth clean release - easy to use Die cuttable
End Use / Recommended Applications Surface protection on high-wear surfaces prone to chipping, scratching, or weathering. Protects outdoor plastics and teak furniture. Long-term protection for marine and other outdoor equipment. Leading edge protection for turbine blades.

Spec

Clear

+ Global
Berry Catalog SKU	8275-92
Sample Request Available	No

+ Physical Properties
Product Construction	Single-Coated Tape
Weight per Square Yard (oz/sy)	6.4 oz/sy
Color(s)	Clear

+ Packaging Data
Max Temp Range	212-257 °F

+ Non-Packaging Data
Gauge / Mil	7.5 mil
Gauge/Thickness Range	5.1 mils to 9.0 mils
Carrier / Support / Facestock	PU (Polyurethane) Film
Adhesive Type	Acrylic
Liner Type	Paper
Peel Strength / Adhesion to Steel	35 oz/in
Tensile Strength	50 lb/in
Operating Temp Range	-10 to 250 °F
Performance Category / Characteristics	Environmental Resistance UV Resistance Abrasion Resistance

+ CPNA
Adhesive	Acrylic
Application Surface protection on most high-wear surfaces prone to scratching, chipping and weathering. Leading edges such as aircraft wings, propellors and wind generator blades. Protection of outdoor plastic or teak furniture.
Brand	Patco
Carrier	Polyurethane
Construction	Single Coated with Liner
Features Regenerative UV protection blocks harmful rays to prevent sun damage. Abrasion resistant backing to protect surfaces. Permanent adhesive will not lift, stain, dry out or leave residue upon removal.
Liner	PE Film
