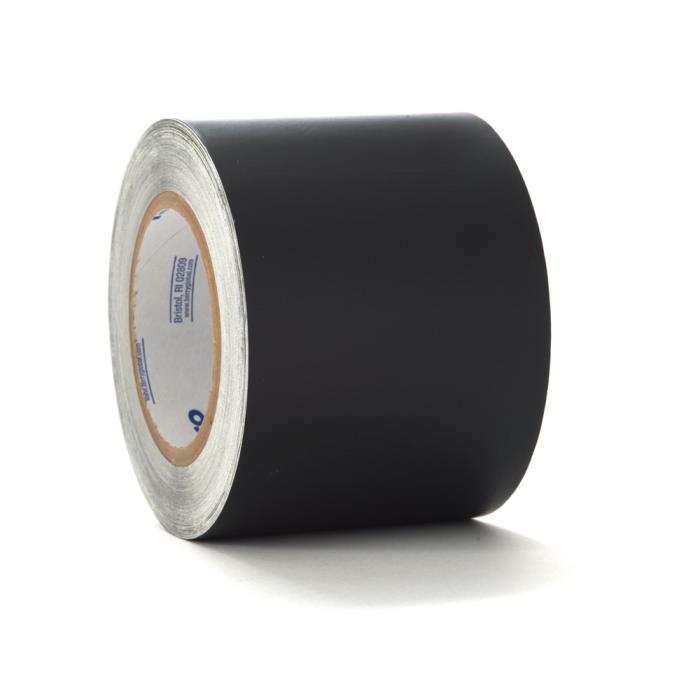

Patco 110-53 Heavy-Duty Vinyl Tape-110

    Quick ContactPrint
    Patco 110-53 Heavy-Duty Vinyl Tape-110

    A-A-1689B, Type II (supersedes PPP-T-66E, Type 1, Class 2

    Files

    Global

    Standardized Name
    Patco 110-53 Heavy-Duty Vinyl Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Automotive Tape
        • Surface Protection Tape
        • Industrial Tape
        Brands
        • HHS
          • Patco
          Markets
          • Building & Construction
            • Renovation & Restoration
            • Specialty Other
              • Abrasives & Polishing
                • Custom Converting
                  • MRO Solutions
                  Capabilities
                  • Manufacturing
                    • Tapes Manufacturing
                      • Adhesive Coating
                        • Adhesive Formulation/Mixing
                      Country Serviced / Available In
                      • Global
                        Features / Benefits
                        • PVC Film Backing
                          • Conformable to irregular surfaces
                          • Durable and abrasion resistant
                        • Acrylic Adhesive
                          • Aggressive long-term bond
                          • Low residue upon removal
                          • Excellent low temperature performance
                        • Paper Release Liner
                          • Die-cuttable
                          • Easy to apply
                        End Use / Recommended Applications
                        Provides maximum masking protection during media blast or shot peening applications Gasketing material Abrasion protection

                        Spec

                        + Global

                        Berry Catalog SKU
                        110-53
                        Sample Request AvailableNo

                        + Physical Properties

                        Product ConstructionSingle-Coated Tape
                        Color(s)Black

                        + Packaging Data

                        Max Temp Range176-212 °F

                        + Non-Packaging Data

                        Gauge / Mil
                        9.5 mil
                        Gauge/Thickness Range9.1 mils to 13.0 mils
                        Carrier / Support / FacestockPVC Film
                        Adhesive TypeAcrylic
                        Adhesive Type (Liner Side)Acrylic
                        Liner TypePaper
                        Tensile Strength
                        25 lb/in
                        Elongation %
                        160%
                        Operating Temp Range
                        -40 to 200 °F
                        Performance Category / Characteristics
                        • Abrasion Resistance
                          • Sealant adhesion
                            Shelf Life
                            12 months from shipment date (at 25 °C)

                            + CPNA

                            Adhesive
                            Acrylic
                            Application
                            Masking protection during mediablast or shot-peening applications. Easy-to-use gasketing material. Abrasion protection.
                            Brand
                            Patco
                            Carrier
                            PVC
                            Construction
                            Single Coated with Liner
                            Features
                            Conformable to irregular surfaces. Extremely durable and easy-to-apply. Die-cuttable. Provides aggressive long-term bond.
                            Liner
                            Kraft Paper
