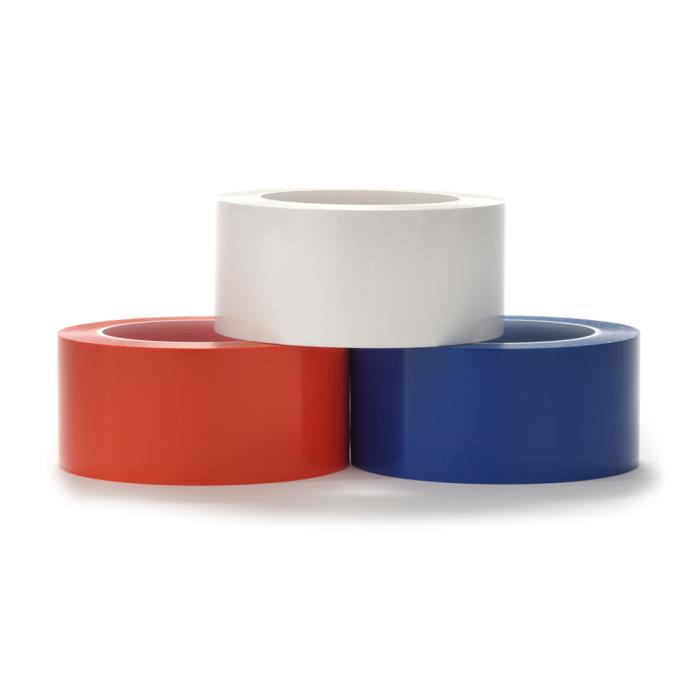

Patco 565 PE Screenblock Tape

    Quick ContactPrint
    Patco 565 PE Screenblock Tape

    Available self wound or with split-back release liner.

    Files

    Global

    Standardized Name
    Patco 565 PE Screenblock Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Automotive Tape
        • Surface Protection Tape
        • Industrial Tape
          • Polyethylene Film Tape
          • Specialty/Converter Tape
            • Graphics & Graphics Protection Tape
          Brands
          • HHS
            • Patco
            Markets
            • Specialty Other
              • Advertising Media
                • Custom Converting
                Capabilities
                • Manufacturing
                  • Tapes Manufacturing
                    • Adhesive Coating
                      • Adhesive Formulation/Mixing
                    Country Serviced / Available In
                    • Global
                      Features / Benefits
                      • LDPE Film
                        • Superior conformability
                        • High stretch to maintain adhesion during frame re-tension
                        • Moisture and solvent resistant
                      • Acrylic Adhesive
                        • Good tack and moderate adhesion
                        • Clean removal from most surfaces
                        • Easy to apply
                      End Use / Recommended Applications
                      Border & blockout tape for screenprinting - prevents ink from penetrating beyond the image area. Bond directly to mesh for multi-color printing and pinhole covering.

                      Spec

                      + Global

                      Berry Catalog SKU
                      565
                      Sample Request AvailableNo

                      + Physical Properties

                      Product ConstructionSingle-Coated Tape
                      Color(s)Clear. White. Orange. Blue

                      + Packaging Data

                      Max Temp Range176-212 °F

                      + Non-Packaging Data

                      Gauge / Mil
                      5.5 mil
                      Gauge/Thickness Range5.1 mils to 9.0 mils
                      Carrier / Support / FacestockPE (Polyethylene) Film
                      Adhesive TypeAcrylic
                      Liner TypeNone
                      Peel Strength / Adhesion to Steel
                      25 oz/in
                      Tensile Strength
                      11 lb/in
                      Elongation %
                      550%
                      Operating Temp Range
                      -40 to 190 °F
                      Performance Category / Characteristics
                      • Moisture/Water Resistance

                        + CPNA

                        Adhesive
                        Acrylic
                        Application
                        For use as a border and block-out tape for screen printing applications. Border tape - It works by forming a well preventing ink from penetrating beyond the image area. Block-out tape - Can be adhered directly to the mesh allowing multi-colored printing and to cover pinholes.
                        Brand
                        Patco
                        Carrier
                        Polyethylene
                        Construction
                        Single Coated
                        Features
                        Superior conformability. Stretches with screen during frame retention. Prevents leakage from inks & cleaners. 500% elongation capacity. Good tack and moderate adhesion. Provides clean removal from most surfaces. Easy to apply.
