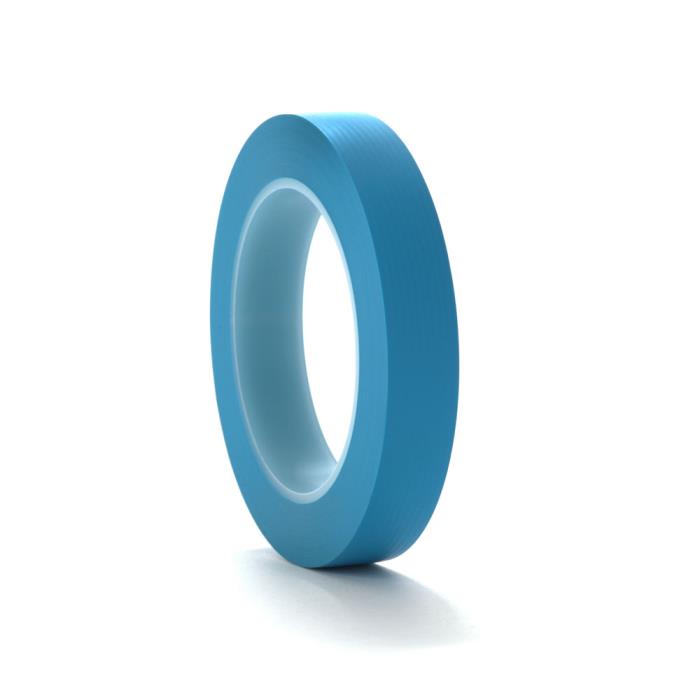

Patco 1676/1676-68 PVC Automotive High Temperature Fineline Masking Tape

    Quick ContactPrint
    Patco 1676/1676-68 PVC Automotive High Temperature Fineline Masking Tape

    Available self wound or with kraft paper release liner.

    Files

    Global

    Standardized Name
    Patco 1676/1676-68 PVC Automotive High Temperature Fineline Masking Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Aerospace Tape
        • Masking & Surface Protection Tapes
        • Automotive Tape
          • Fineline Masking Tape
        Brands
        • HHS
          • Patco
          Markets
          • Shipping & Transportation
            • Aerospace
              • Automotive
                • Product Protection
                Capabilities
                • Manufacturing
                  • Tapes Manufacturing
                    • Adhesive Coating
                      • Adhesive Formulation/Mixing
                    Country Serviced / Available In
                    • Global
                      Features / Benefits
                      • PVC Film Backing
                        • Tough and conformable
                        • Translucent for easy application and inspection
                        • Moisture and solvent resistant
                        • Crisp, fineline edge
                        • Printable and die-cuttable
                      • Rubber Based Adhesive
                        • Good high temperature performance
                        • Stain and ghosting resistant
                      • Clean-cut Plastic Core
                        • Recyclable and clean - no dust or contaminants
                      End Use / Recommended Applications
                      Masking color separations on plastic (TPO & RIM) automotive fascia, trim, and finished metals in high temp OEM bake cycles (280 °F for 45 min)* Aircraft paint operations OEM paint line powerwash cycles Clean room paint masking

                      Spec

                      + Global

                      Berry Catalog SKU
                      1676
                      Sample Request AvailableNo

                      + Physical Properties

                      Product ConstructionSingle-Coated Tape
                      Color(s)Blue

                      + Packaging Data

                      Max Temp Range257-302 °F

                      + Non-Packaging Data

                      Gauge / Mil
                      5.5 mil
                      Gauge/Thickness Range5.1 mils to 9.0 mils
                      Carrier / Support / FacestockPVC Film
                      Adhesive TypeRubber
                      Liner TypePaper
                      Peel Strength / Adhesion to Steel
                      24 oz/in
                      Tensile Strength
                      16 lb/in
                      Elongation %
                      110%
                      Operating Temp Range
                      40 to 280 °F
                      Performance Category / Characteristics
                      • Moisture/Water Resistance

                        + CPNA

                        Adhesive
                        Rubber
                        Application
                        Masking color separations on plastic automotive fascia, trim, and finished metals in high temperature OEM bake cycles.
                        Brand
                        Patco
                        Carrier
                        PVC
                        Construction
                        Single Coated
                        Features
                        Highly conformable for compound curves and irregular surfaces. High temperature resistance. Staining and ghosting resistance.
