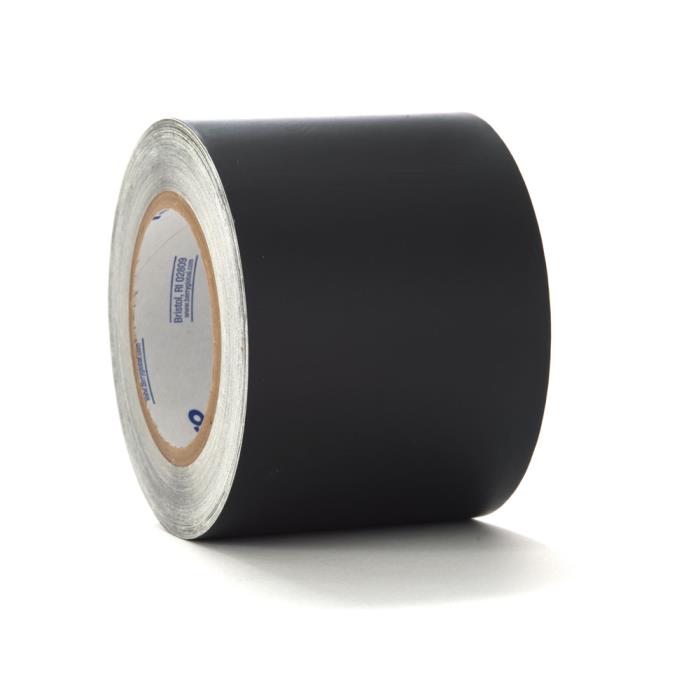

Patco 1800 Flame Retardant Galley Tape

    Quick ContactPrint
    Patco 1800 Flame Retardant Galley Tape

    Meets FAA - FAR 25.853 (a); Fokker - Fk05-159 and Fk05-160; Bombardier/deHavilland - DSC 91-25-1,DSC 91-25-2, DSC 91-25-3 B, DSC 91-25-4, DSC 91-25-5, DSC 91-25-6; A-A-1689B, Type II (supersedes PPP-T-66E, Type 1, Class 2)

    Files

    Global

    Standardized Name
    Patco 1800 Flame Retardant Galley Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Aerospace Tape
        • Moisture Barrier/Galley Tape
      Brands
      • HHS
        • Patco
        Markets
        • Shipping & Transportation
          • Aerospace
          Capabilities
          • Manufacturing
            • Tapes Manufacturing
              • Adhesive Coating
                • Adhesive Formulation/Mixing
              Country Serviced / Available In
              • Global
                Features / Benefits
                • PVC Film Backing
                  • Tough and conformable
                  • Exceptional moisture resistance
                  • Allows wide-width usage
                  • Flame retardant - meets key industry standards
                • Acrylic Adhesive
                  • Permanent bond, will not delaminate
                  • Compatible with most sealants
                • Kraft Paper Release Liner
                  • Smooth clean release - easy to use
                  • Die cuttable
                End Use / Recommended Applications
                Aircraft wet seal applications in main cabin areas such as galleys, lavatories, entryways, and other areas that are susceptible to moisture. Aircraft corrosion inhibitor.

                Spec

                + Global

                Berry Catalog SKU
                1800
                Sample Request AvailableNo

                + Physical Properties

                Product ConstructionSingle-Coated Tape
                Weight per Square Yard (oz/sy)
                10.7 oz/sy
                Color(s)Black

                + Packaging Data

                Max Temp Range176-212 °F

                + Non-Packaging Data

                OEM / Specification Body & Specification
                • FAA
                  • FAR 25.853(a)
                  • US Govt/Military
                    • PPP-T-60D
                    • Bombardier/deHavilland
                      • DSC 91-25-2, -3, -4, -5, -6
                      • Fokker
                        • FK05-159
                          • FK05-160
                          Gauge / Mil
                          9.5 mil
                          Gauge/Thickness Range9.1 mils to 13.0 mils
                          Carrier / Support / FacestockPVC Film
                          Adhesive TypeAcrylic
                          Liner TypePaper
                          Peel Strength / Adhesion to Steel
                          50 oz/in
                          Tensile Strength
                          25 lb/in
                          Elongation %
                          200%
                          Operating Temp Range
                          -40 to 200 °F
                          Performance Category / Characteristics
                          • Moisture/Water Resistance
                            • Flame Retardant

                              + CPNA

                              Adhesive
                              Acrylic
                              Application
                              Aircraft waterseal applications in main cabin wet areas (galleys, lavatories, & entryways).
                              Brand
                              Patco
                              Carrier
                              PVC
                              Construction
                              Single Coated with Liner
                              Features
                              Tough, conformable and moisture resistant. Permanent and flame retardant. Allows wide width usage. Helps prevent corrosion on floor structures. Will not delaminate. Meets FAR requirements. Compatible with most sealants. Fast application. Can be die-cut to various shapes.
                              Liner
                              Kraft Paper
