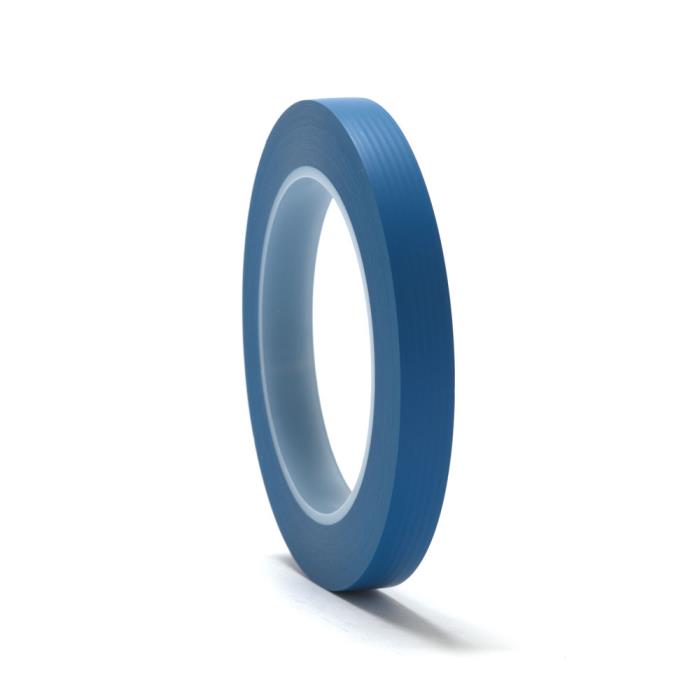

Patco 179 Automotive Fineline Masking Tape

    Patco 179 Automotive Fineline Masking Tape provides conformability when used for applications such as high temperature bake cycles, clean room paint masking, OEM paint line, power wash cycles, and masking color separations on finished metals and plastics. Available in multiple colors and incremental sizes.

    Global

    Standardized Name
    Patco 179 Automotive Fineline Masking Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Aerospace Tape
        • Masking & Surface Protection Tapes
        • Automotive Tape
          • Fineline Masking Tape
        Brands
        • HHS
          • Patco
          Markets
          • Shipping & Transportation
            • Aerospace
              • Automotive
              Capabilities
              • Manufacturing
                • Tapes Manufacturing
                  • Adhesive Coating
                    • Adhesive Formulation/Mixing
                  Country Serviced / Available In
                  • Global
                    Features / Benefits
                    • PVC Film Backing
                      • Solvent and moisture resistant
                      • Handles compound and tight radius curves
                      • Crisp, fineline edge
                      • Non-glare matte finish
                    • Rubber Based Adhesive
                      • Good high temperature performance
                      • Staining and ghosting resistant
                    • Clean-cut Plastic Core
                      • Recyclable and clean - no dust or contaminants
                    End Use / Recommended Applications
                    Masking color separations on finished metals and plastics (TPO & RIM) fascia and trim. High temperature bake cycles (280 °F up to 45 min). Clean room paint masking. OEM paintline and powerwash operations. Short-term outdoor masking. Autobody aftermarket fineline color separations.

                    + Global

                    Berry Catalog SKU
                    179
                    Sample Request AvailableNo

                    + Physical Properties

                    Product ConstructionSingle-Coated Tape
                    Color(s)Blue
                    Custom color(s)
                    Lt Blue, Medium Blue (Matte)

                    + Packaging Data

                    Max Temp Range257-302 °F

                    + Non-Packaging Data

                    Gauge / Mil
                    5.5 mil
                    Gauge/Thickness Range5.1 mils to 9.0 mils
                    Carrier / Support / FacestockPVC Film
                    Adhesive TypeRubber
                    Liner TypeNone
                    Peel Strength / Adhesion to Steel
                    15 oz/in
                    Tensile Strength
                    15 lb/in
                    Elongation %
                    100%
                    Operating Temp Range
                    40 to 280 °F
                    Performance Category / Characteristics
                    • Moisture/Water Resistance

                      + CPNA

                      Adhesive
                      Rubber
                      Application
                      Masking color separations on finished metals and plastics (TPO & RIM) fascia and trim. High temperature bake cycles (280 °F up to 45 min). Clean room paint masking. OEM paintline and powerwash operations. Short-term outdoor masking. Autobody aftermarket fineline color separations.
                      Brand
                      Patco
                      Carrier
                      PVC
                      Construction
                      Single Coated
                      Features
                      Conformable and solvent resistant. Non-glare matte finish. Excellent surface wettability and high temperature performance. Plastic core is recyclable.
