Poyken B17 7 mil General Purpose Electrical Tape-Colors

    Quick ContactPrint
    Poyken B17 7 mil General Purpose Electrical Tape-Colors

    7 mil General Purpose Electrical Tape

    Files

    Global

    Standardized Name
    Polyken B17 7 mil General Purpose Electrical Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Industrial Tape
        • Electrical Tape
      Brands
      • HHS
        Markets
        • Building & Construction
          • Commercial Construction
            • Residential Construction
            Capabilities
            • Manufacturing
              • Tapes Manufacturing
                • Adhesive Coating
                  • Adhesive Formulation/Mixing
                Country Serviced / Available In
                • Global
                  Features / Benefits
                  • PVC Backing
                    • Stretchy and conformable for wrapping wires
                    • Durable
                    • Conformable
                  • Rubber Adhesive
                    • Provides a strong long-term bond
                    • No flagging or lifting
                  • UL 510 Classified
                    • Meets requirements for most electrical applications
                  End Use / Recommended Applications
                  Wire splicing. Wire insulation. Spiral wrapping electrical wire and harnesses. Color coding.

                  Spec

                  + Global

                  Berry Catalog SKU
                  B17
                  Sample Request AvailableNo

                  + Physical Properties

                  Product ConstructionSingle-Coated Tape

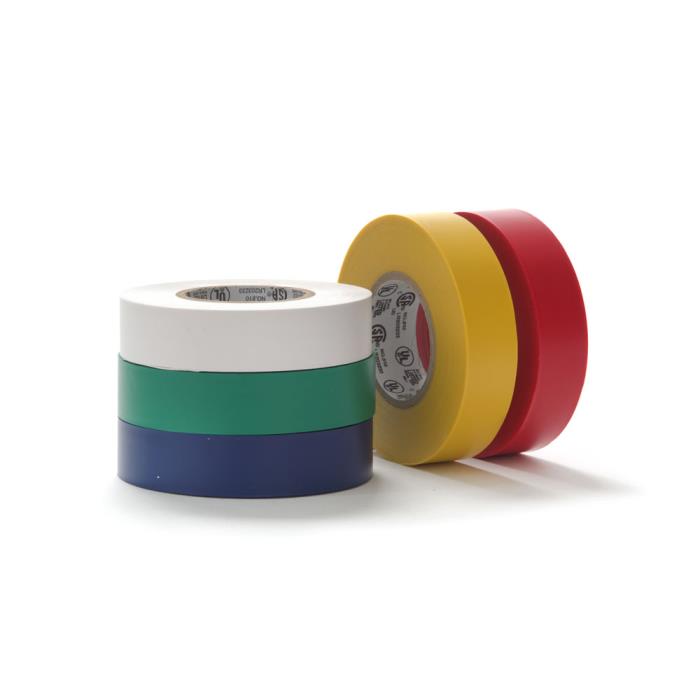

                  Color(s)White. Red. Yellow. Green. Blue

                  + Packaging Data

                  Max Temp Range176-212 °F

                  + Non-Packaging Data

                  OEM / Specification Body & Specification
                  • UL
                    • 510 Classified
                    Gauge / Mil
                    7.0 mil
                    Gauge/Thickness Range5.1 mils to 9.0 mils
                    Carrier / Support / FacestockPVC Film
                    Adhesive TypeRubber
                    Liner TypeNone
                    Operating Temp Range
                    40 to 180 °F

                    + CPNA

                    Adhesive
                    Rubber
                    Application
                    Wire splicing, harness wrapping, weather-proofing outdoor connections, color coding.
                    Brand
                    Polyken
                    Carrier
                    PVC
                    Construction
                    Single Coated
                    Features
                    Complies with UL 510. Dielectric strength up to 9500v. Good adhesion and all weather performance.
