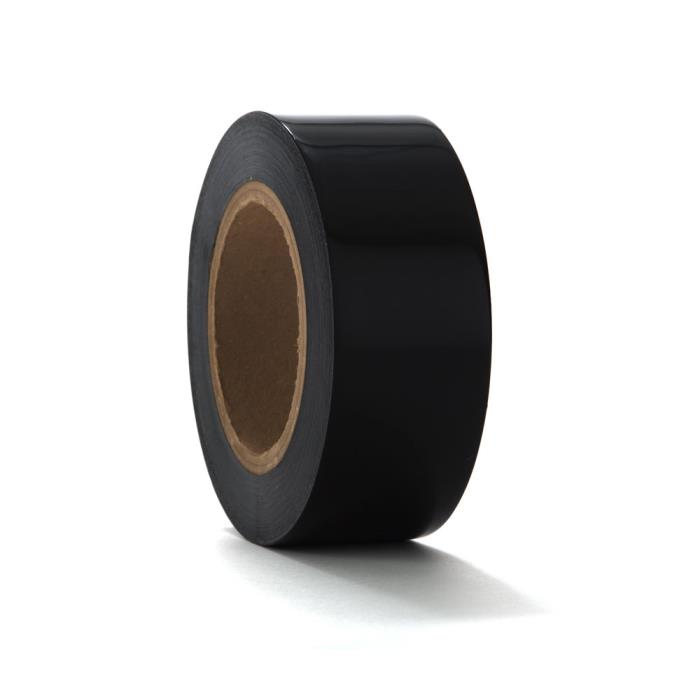

Patco 5400B Aircraft Preservation & Sealing Tape

Patco 5400B Aircraft Preservation & Sealing Tape provides UV, wear, and abrasion resistance when used for applications such as long-term preservation, sealing, and splicing direct protective masks on aircraft, trucks, boats, or industrial equipment during outdoor storage. Black In color and also available in incremental sizes.

Files

Download file
TDSPatco5400B_110623

Global
Standardized Name	Patco 5400B Aircraft Preservation & Sealing Tape - 5400B
Berry Global Entity	HHS Tape
Products	Tapes & Adhesives Aerospace Tape Masking & Surface Protection Tapes Industrial Tape Preservation & Sealing Tape
Brands	HHS Patco
Markets	Shipping & Transportation Aerospace
Capabilities	Manufacturing Tapes Manufacturing Adhesive Coating Adhesive Formulation/Mixing
Country Serviced / Available In	Global
Features / Benefits LDPE Film Conformable for irregular surfaces Abrasion resistant UV and weather resistant Moisture, solvent, and chemical resistant Rubber Adhesive Good quick stick Excellent adhesion to PE and shrink film Clean removal from most surface Resists staining and ghosting Excellent low-temperature adhesion
End Use / Recommended Applications Long-term preservation, sealing, and splicing. Direct protective mask on aircraft, trucks, boats, and industrial equipment during outdoor storage. Splicing, seaming, and sealing polyethylene films. Used in conjunction with outdoor shrink film to secure film and seal film edges during transport or extended outdoor storage.

Spec

Black

+ Global
Berry Catalog SKU	5400B
Sample Request Available	No

+ Physical Properties
Product Construction	Single-Coated Tape
Color(s)	Black

+ Packaging Data
Max Temp Range	176-212 °F

+ Non-Packaging Data
OEM / Specification Body & Specification	US Govt/Military
Gauge / Mil	9.0 mil
Gauge/Thickness Range	5.1 mils to 9.0 mils
Carrier / Support / Facestock	Polypropylene
Adhesive Type	Rubber
Liner Type	None
Peel Strength / Adhesion to Steel	25 oz/in
Tensile Strength	15 lb/in
Elongation %	600%
Operating Temp Range	-40 to 200 °F
Performance Category / Characteristics	UV Resistance Moisture/Water Resistance Abrasion Resistance

+ CPNA
Adhesive	Rubber
Application Long term preservation, sealing, and splicing applications. Direct protective mask on aircraft, trucks, boats, and industrial equipment during outdoor storage. Can be used in conjunction with outdoor shrink film to secure and seal the shrink film border firmly during transportation or extended outdoor exposure.
Brand	Patco
Carrier	Polyethylene
Construction	Single Coated
Features Heavy duty, weather-resistant polyethylene backing with a non-staining, clean removal, rubber based adhesive. Good UV resistance. Highly conformable. Will not breakdown after extended outdoor exposure. Adheres snugly to contoured and irregular surfaces. Will not leave adhesive residue, stains, or ghosting on most surfaces.
