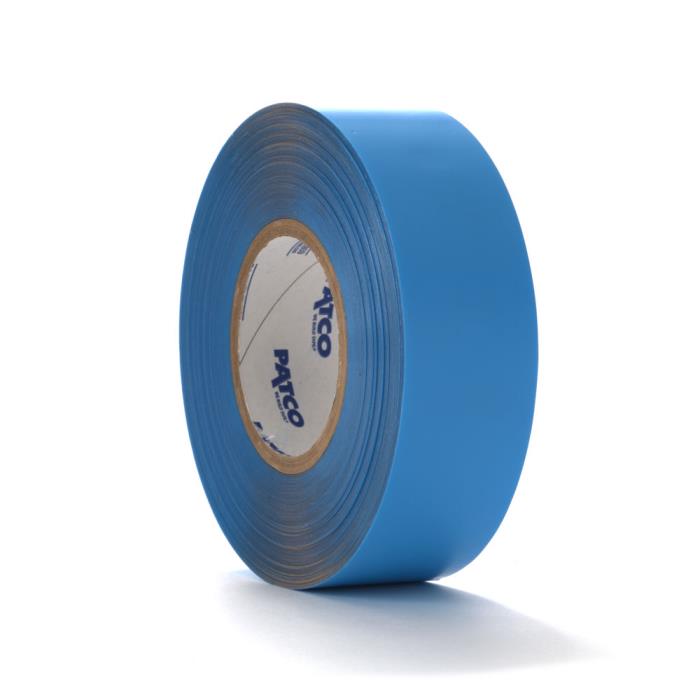

Patco D9215FR Aircraft Waterseal Tape & Corrosion Inhibitor

    Meets FAR 25.853(a), and Boeing BMS 8-346 Type II, Class 1

    Global

    Standardized Name
    Patco D9215FR Aircraft Waterseal Tape & Corrosion Inhibitor
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Aerospace Tape
        • Masking & Surface Protection Tapes
          • Moisture Barrier/Galley Tape
        Brands
        • HHS
          • Patco
          Markets
          • Shipping & Transportation
            • Aerospace
            Capabilities
            • Manufacturing
              • Tapes Manufacturing
                • Adhesive Coating
                  • Adhesive Formulation/Mixing
                Country Serviced / Available In
                • Global
                  Features / Benefits
                  • Polyurethane Film Backing
                    • Protects and holds under heavy usage
                    • Excellent moisture barrier
                    • Tough and elastic
                    • Excellent lay flat and dimensional stability
                    • Transparent to allow for visual inspection
                  • Acrylic Adhesive
                    • Strong permanent bond
                    • Compatible with sealants
                    • Repositionable
                  • Blue HDPE Liner
                    • Smooth clean release - easy to use
                    • Die cuttable
                  End Use / Recommended Applications
                  Floor joint sealing on aircraft decking in all wet areas including: entryways, galleys, lavatories, and more. Moisture barrier applications. Reinforcement and moisture barrier for aircraft insulation fastener openings. Anti-slip tape for aircraft overhead bins.

                  + Global

                  Berry Catalog SKU
                  D9215FR
                  Sample Request AvailableNo

                  + Physical Properties

                  Product ConstructionSingle-Coated Tape
                  Weight per Square Yard (oz/sy)
                  12.6 oz/sy
                  Color(s)Clear

                  + Packaging Data

                  Max Temp Range257-302 °F

                  + Non-Packaging Data

                  OEM / Specification Body & Specification
                  • FAA
                    • FAR 25.853(a)
                    Gauge / Mil
                    14.0 mil
                    Gauge/Thickness Range>13.0 mils
                    Carrier / Support / FacestockPU (Polyurethane) Film
                    Adhesive TypeAcrylic
                    Liner TypeFilm
                    Peel Strength / Adhesion to Steel
                    80 oz/in
                    Tensile Strength
                    80 lb/in
                    Operating Temp Range
                    -40 to 275 °F
                    Performance Category / Characteristics
                    • Moisture/Water Resistance
                      • Abrasion Resistance
                        • Hand tearable

                          + CPNA

                          Adhesive
                          Polyurethane
                          Application
                          Aircraft waterseal applications in main cabin areas including entryways, lavatories, galleys and other areas susceptible to water damage. Suitable for reinforcing and providing moisture protection for aircraft insulation fastener openings.
                          Brand
                          Patco
                          Carrier
                          Polyurethane
                          Construction
                          Single Coated with Liner
                          Features
                          Flame retardant, durable, and conformable. Provides excellent moisture-resistant seals with a transparent backing to allow for easy inspection of surfaces.
                          Liner
                          PE Film
