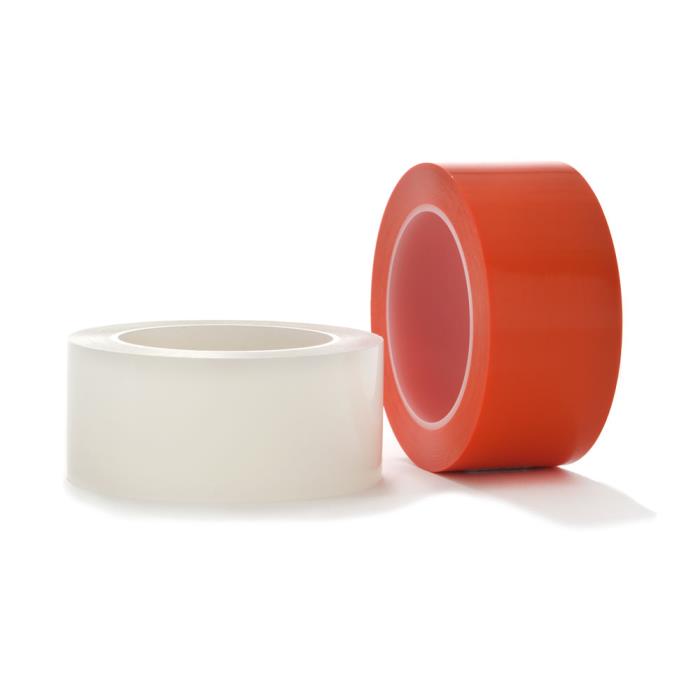

Patco 5570 Removable Clean Room Surface Protection Tape

Patco 5570 Removeable Clean Room Surface Protection Tape provides abrasion and moisture resistance when used for applications such as sealing clean room containers, surface and label overlaminate, and protective masking on plastics and metals during shipping and assembly. Available in multiple colors and also available in incremental sizes.

Files

Download file
TDSPatco5570_081822

Global
Standardized Name	Patco 5570 Removable Clean Room Surface Protection Tape
Berry Global Entity	HHS Tape
Products	Tapes & Adhesives Industrial Tape Clean Room Tape Polyethylene Film Tape
Brands	HHS Patco
Markets	Specialty Other Accessories Custom Converting Electronics MRO Solutions
Capabilities	Manufacturing Tapes Manufacturing Adhesive Coating Adhesive Formulation/Mixing
Country Serviced / Available In	Global
Features / Benefits LDPE Film Thick and highly conformable Abrasion and moisture resistant Perforated spacing available Acrylic Adhesive Solvent resistant Excellent high and low temperature performance Removes cleanly - will not leave residue Easy to apply Plastic Core Clean and fiber free, recyclable
End Use / Recommended Applications Sealing clean room containers. Surface and label overlaminate. Protective masking on plastics and metals during shipping and assembly - saves money by reducing damage to delicate surfaces!.

Spec

+ Global
Berry Catalog SKU	5570
Sample Request Available	No

+ Physical Properties
Product Construction	Single-Coated Tape
Color(s)	Clear. White. Orange

+ Packaging Data
Max Temp Range	176-212 °F

+ Non-Packaging Data
Gauge / Mil	5.5 mil
Gauge/Thickness Range	5.1 mils to 9.0 mils
Carrier / Support / Facestock	PE (Polyethylene) Film
Adhesive Type	Acrylic
Peel Strength / Adhesion to Steel	12 oz/in
Tensile Strength	12 lb/in
Elongation %	500%
Operating Temp Range	-40 to 190 °F
Performance Category / Characteristics	Moisture/Water Resistance Abrasion Resistance

+ Markets and Manufacturing Data
Market	Home Care. Automotive
Market - Segment	Automotive
Market - End Use	Home Care

+ CPNA
Adhesive	Acrylic
Application Automotive Fascia. Protect assembly weld points in high temperature paint line (250f, 40min)General protective masking applications on plastics and metal that require temporary surface protection through assembly or shipping.
Brand	Patco
Carrier	Polyethylene
Construction	Single Coated
Features Thick, and highly conformable to irregular surfaces. Removes easily and cleanly without leaving residue. Abrasion, moisture & solvent resistant.
