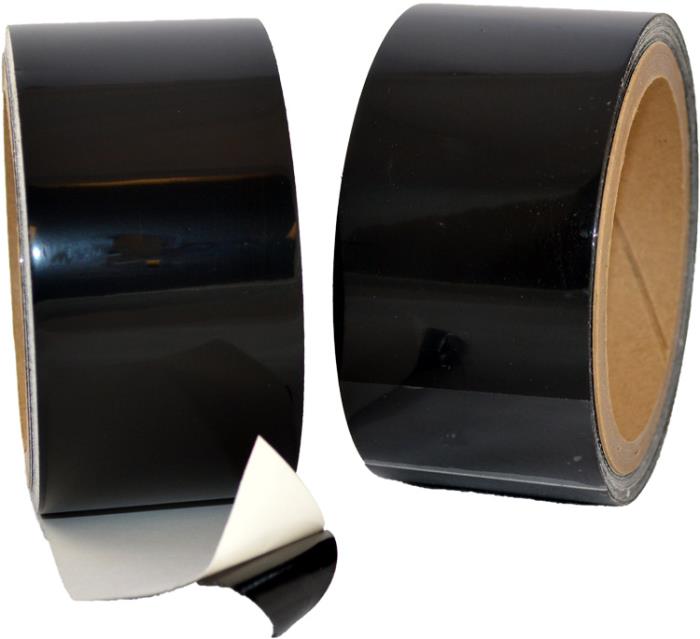

Patco 5075 Wire Harness Attachment Tape

    Quick ContactPrint
    Patco 5075 Wire Harness Attachment Tape

    Meets GM 9986080 requirements.

    Files

    Global

    Standardized Name
    Patco 5075 Wire Harnes Attachment Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Automotive Tape
        • Hold Down Tape
          • Wire Harness Tape
          • Specialty/Converter Tape
            • Assembly & Attachment Tape
          Brands
          • HHS
            • Patco
            Markets
            • Shipping & Transportation
              • Automotive
              • Specialty Other
                • Custom Converting
                  • MRO Solutions
                  Capabilities
                  • Manufacturing
                    • Tapes Manufacturing
                      • Adhesive Coating
                        • Adhesive Formulation/Mixing
                      Country Serviced / Available In
                      • Global
                        Features / Benefits
                        • Low-density PE Film Backing
                          • Conformable for curves and irregular surfaces
                          • Low weight, cost effecive alternative to foil
                        • Acrylic Adhesive
                          • Aggressive and permanent bond to headliner and harness surfaces
                          • Strong, locking bond to fabrics
                          • Excellent longevity
                          • Excellent high and low temperature performance
                        • 66# Paper Liner
                          • Smooth clean release - easy to use
                          • Die cuttable
                        End Use / Recommended Applications
                        Wire harness attachment to headliners, flooring, and other surfaces in automotive, marine, recreational equipment, construction, and more. Permanent surface attachments. Anti-squeak, anti-itch headliner barrier. Alternative to commonly used foil tapes.

                        Spec

                        + Global

                        Berry Catalog SKU
                        5075
                        Sample Request AvailableNo

                        + Physical Properties

                        Product ConstructionSingle-Coated Tape
                        Color(s)Clear. Black

                        + Packaging Data

                        Max Temp Range176-212 °F

                        + Non-Packaging Data

                        OEM / Specification Body & Specification
                        • General Motors
                          Gauge / Mil
                          7.0 mil
                          Gauge/Thickness Range5.1 mils to 9.0 mils
                          Carrier / Support / FacestockPolypropylene
                          Adhesive TypeAcrylic
                          Liner TypePaper
                          Tensile Strength
                          11.5 lb/in
                          Elongation %
                          500%
                          Operating Temp Range
                          -40 to 190 °F

                          + Markets and Manufacturing Data

                          MarketHome Care. Automotive
                          Market - SegmentAutomotive
                          Market - End UseHome Care

                          + CPNA

                          Adhesive
                          Acrylic
                          Application
                          Wire harness attachment to headliners, flooring, and other surfaces in automotive, marine, recreational equipment, construction, and more. Permanent surface attachments. Anti-squeak, anti-itch headliner barrier.
                          Brand
                          Patco
                          Carrier
                          Polyethylene
                          Construction
                          Single Coated with Liner
                          Features
                          Conformable for curves and irregular surfaces. Low weight, cost effecive alternative to foil. Aggressive and permanent bond to surfaces including fabrics. Excellent longevity. Excellent high and low temperature performance.
                          Liner
                          68#
