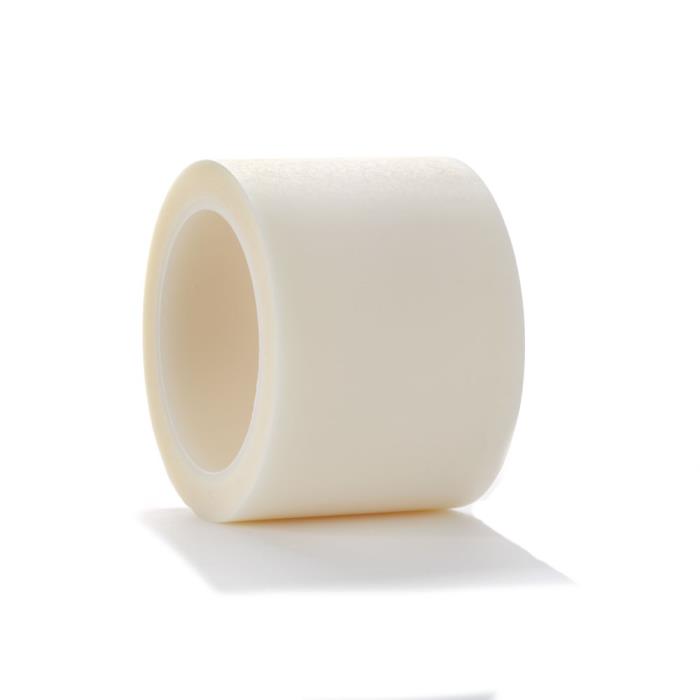

Patco 3920R Polypropylene Surface Protection Tape

Patco 3920R Polypropylene Surface Protection Tape provides conformability when used for applications such as graphics protection for skis, snowboards, and outdoor equipment where crisp graphics are critical, protective mask for surfaces during lamination, molding, or machining where clean removal is critical, and screen and direct print capabilities. Available in multiple colors and incremental sizes.

Files

Download file
TDSPatco3920R_081822

Global
Standardized Name	Patco 3920R Polypropylene Surface Protection Tape
Berry Global Entity	HHS Tape
Products	Tapes & Adhesives Automotive Tape Surface Protection Tape Industrial Tape Specialty/Converter Tape Graphics & Graphics Protection Tape
Brands	HHS Patco
Markets	Shipping & Transportation Aerospace Automotive Marine Specialty Other Custom Converting MRO Solutions
Capabilities	Manufacturing Tapes Manufacturing Adhesive Coating Adhesive Formulation/Mixing
Country Serviced / Available In	Global
Features / Benefits Embossed polypropylene backing Conformable and stretchy Transparent for easy inspection of surfaces Abrasion and moisture resistant Release coated for smooth, consistent unwind, even at wide widths Rubber Based Adhesive Does not lift during molding or shaping Smooth, easy unwind Removes cleanly from most surfaces - no residue upon removal Excellent extreme temperature performance
End Use / Recommended Applications Graphics protection for skis, snowboards, and other outdoor equipment where crisp graphics are critical. Screen and direct print (130 °C press temp). Protective mask for surfaces during lamination, molding, or machining where clean removal is critical.

Spec

+ Global
Berry Catalog SKU	3920R
Sample Request Available	No

+ Physical Properties
Product Construction	Single-Coated Tape
Color(s)	Clear. Custom Color
Custom color(s)	Tinted Red

+ Packaging Data
Max Temp Range	302-392 °F

+ Non-Packaging Data
Gauge / Mil	4.2 mil
Gauge/Thickness Range	3.1 mils to 5.0 mils
Carrier / Support / Facestock	Polypropylene
Adhesive Type	Rubber
Liner Type	None
Peel Strength / Adhesion to Steel	15 oz/in
Tensile Strength	14 lb/in
Elongation %	700%
Operating Temp Range	-40 to 325 °F
Performance Category / Characteristics	Moisture/Water Resistance Abrasion Resistance

+ CPNA
Adhesive	Rubber
Application Graphics protection for skis, snowboards, and other outdoor equipment where crisp graphics are critical. Screen and direct print surface protection during lamination, molding, or machining.
Brand	Patco
Carrier	Polypropylene
Construction	Single Coated
Features Embossed polypropylene backing is conformable and stretchy, abrasion, and moisture resistant, and release-coated to ensure smooth consistent unwind. Transparent film makes surface inspection easy. The rubber adhesive formulation resists lifting during molding and shaping processes but removes cleanly without leaving residue. Excellent extreme temperature performance to 325F.
