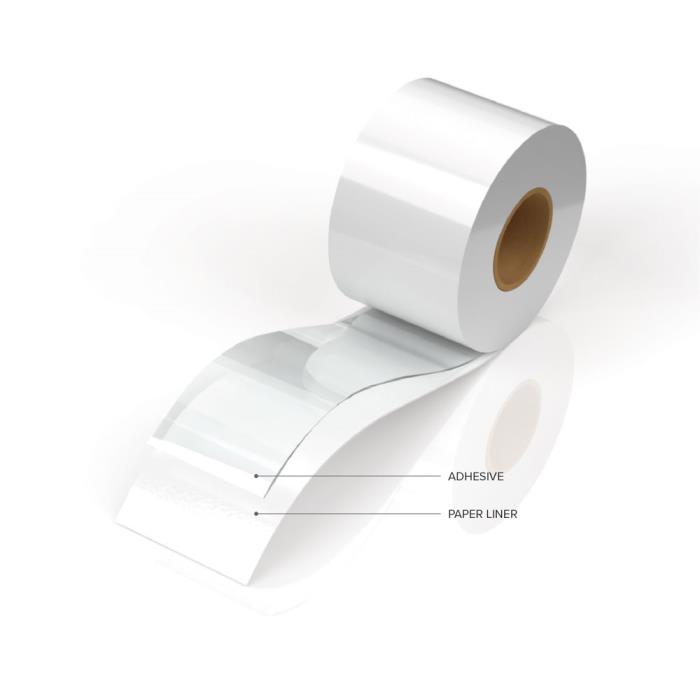

Adchem 655 LSE Acrylic Transfer Tape

    Quick ContactPrint
    Adchem 655 LSE Acrylic Transfer Tape

    Meets various automotive specifications - contact Berry for details.

    Files

    Global

    Standardized Name
    Adchem 655 LSE Acrylic Transfer Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Automotive Tape
        • Attachment Part Mounting
          • Exterior & Interior Trim
            • Interior Foam & Fiber Bonding
            • Specialty/Converter Tape
              • Foam Bonding Tape
            Brands
            • HHS
              • Adchem
              Brand URL
              http://adchem.com/main/home.aspx
              Markets
              • Shipping & Transportation
                • Automotive
                • Specialty Other
                  • Custom Converting
                  Capabilities
                  • Manufacturing
                    • Tapes Manufacturing
                      • Adhesive Coating
                    Country Serviced / Available In
                    • Global
                      Features / Benefits
                      • Acrylic Adhesive
                        • Quick initial tack
                        • Low fogging, low flammability
                        • High peel and shear properties
                        • Excellent high and low temperature performance
                      • 74# Kraft Liner
                        • Conformable and good dimensional stability
                      End Use / Recommended Applications
                      Automotive interior attachments. Glass to rear-view mirror. Vibration and sound damping with fabrics and foams. Wire and cable mounting. Bonding to ABS, foil, film, TPO, TFPP, nylon, and glass.

                      Spec

                      + Global

                      Berry Catalog SKU
                      655
                      Sample Request AvailableNo

                      + Physical Properties

                      Product ConstructionTransfer Tape
                      Color(s)Clear

                      + Packaging Data

                      Max Temp Range302-392 °F

                      + Non-Packaging Data

                      OEM / Specification Body & Specification
                      • Chrysler
                        • FCA MS-CC-240
                          • FCA MS.90075
                            • FCA PF-10770
                            • Ford
                              • ESA-M11P19-A
                                • ESB-M11P8-A
                                  • ESB-M3G76-B2
                                    • WSS-M11P62-A
                                      • WSS-M99P48-A3
                                      • General Motors
                                        • GMW14892
                                          • GMW16443 Type 1
                                            • GMW16443 Type 2
                                              • GM9985281
                                              • Nissan
                                                • NES M 8506
                                                Gauge / Mil
                                                10.0 mil
                                                Gauge/Thickness Range9.1 mils to 13.0 mils
                                                Carrier Thickness (mil)
                                                N/A
                                                Adhesive TypeAcrylic
                                                Liner TypePolycoated Paper
                                                Operating Temp Range
                                                -30 to 375 °F
                                                Performance Category / Characteristics
                                                • Low Surface Energy Bonding

                                                  + CPNA

                                                  Application
                                                  Automotive interior applications. Glass to rear-view mirror mounting. Vibration and sound damping with fabrics and foams. Wire and cable mounting. Bonding to ABS, foil, film, TPO, TFPP, nylon, and glass.
                                                  Brand
                                                  Adchem
                                                  Construction
                                                  Transfer Adhesive
                                                  Features
                                                  Quick initial tack with high peel and shear strength. Excellent high and low temperature performance. Bonds well to low surface energy materials. Low fogging. Ideal for low VOC applications.
                                                  Laminating Adhesive Description
                                                  Acrylic
                                                  Laminating Thickness
                                                  4.5 mil
                                                  Liner
                                                  74# polycoated kraft
