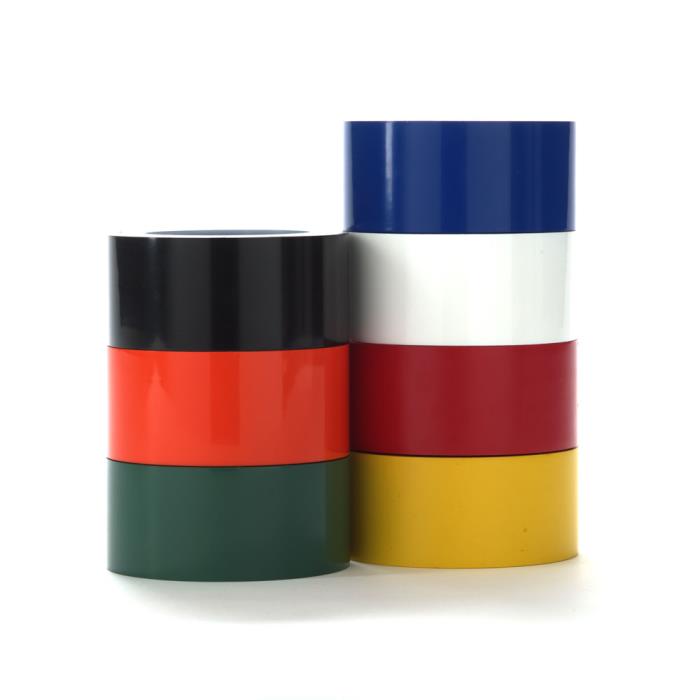

Patco 503R Polyethylene Film Tape-Colors

Patco 503R Polyethylene Film Tape provides conformability when used for applications such as splicing and seaming, thermal insulation outer wrap, temporary hold down, color coding and aisle marking, general purpose sealing, as well as industrial fabricating applications. Available in multiple colors and incremental sizes.

Files

Download file
TDSPatco503R_062223

Global
Standardized Name	Patco 503R Polyethylene Film Tape - Colors
Berry Global Entity	HHS Tape
Products	Tapes & Adhesives Industrial Tape Color Coding & Safety Tape Polyethylene Film Tape
Brands	HHS Patco
Markets	Building & Construction Commercial Construction Residential Construction Shipping & Transportation Trucking Warehousing Specialty Other Custom Converting MRO Solutions
Capabilities	Manufacturing Tapes Manufacturing Adhesive Coating Adhesive Formulation/Mixing
Country Serviced / Available In	Global
Features / Benefits LDPE Film Conformable for irregular surfaces Excellent moisture barrier properties Stands up to mechanical and chemical wear Rubber Adhesive Adheres well to a wide variety of surfaces Excellent surface wetability Solvent and moisture resistant Low in halogens and leachable chlorides
End Use / Recommended Applications General purpose sealing. Splicing and seaming. Color coding ad aisle marking. Bondbreaker tape. Temporary hold down. Thermal insulation outerwrap. Industrial fabricating applications. Decorative markings & striping.

Spec

+ Global
Berry Catalog SKU	503R
Sample Request Available	No

+ Physical Properties
Product Construction	Single-Coated Tape
Color(s)	White. Black. Red. Orange. Yellow. Green. Blue

+ Packaging Data
Max Temp Range	176-212 °F

+ Non-Packaging Data
Gauge / Mil	5.5 mil
Gauge/Thickness Range	5.1 mils to 9.0 mils
Carrier / Support / Facestock	PE (Polyethylene) Film
Adhesive Type	Rubber
Liner Type	None
Peel Strength / Adhesion to Steel	25 oz/in
Tensile Strength	11 lb/in
Elongation %	400%
Operating Temp Range	-40 to 190 °F
Performance Category / Characteristics	Moisture/Water Resistance

+ CPNA
Adhesive	Rubber
Application Designed as a general purpose sealing, seaming, splicing, and spiral wrapping tape. Color coding and aisle marking. Recyclable splice tape for polyethylene films. Non-contaminating in nuclear and other sensitive environments. Non-contaminating in nuclear and other sensitive environments.
Brand	Patco
Carrier	Polyethylene
Construction	Single Coated
Features Excellent moisture barrier. Chemical resistant. Controlled unwind during application. Provides a permanent seal indoors or outside. ---Stands up to many harsh solvents and chemicals. Conforms snugly to irregular surfaces.
