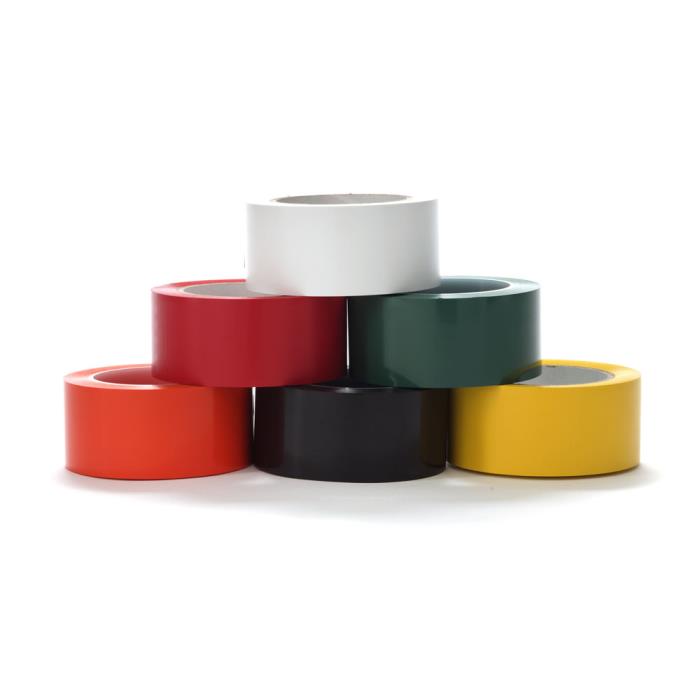

Patco 152 PVC Color Coding & Aisle Marking Tape

    Quick ContactPrint
    Patco 152 PVC Color Coding & Aisle Marking Tape

    Meets A-A-1689B, Type II (supercedes PPP-T-66E, Type1, Class 2)

    Files

    Global

    Standardized Name
    Patco 152 PVC Color Coding & Aisle Marking Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Industrial Tape
        • Color Coding & Safety Tape
      Brands
      • HHS
        • Patco
        Markets
        • Building & Construction
          • Commercial Construction
          • Shipping & Transportation
            • Trucking
              • Warehousing
              • Specialty Other
                • MRO Solutions
                Capabilities
                • Manufacturing
                  • Tapes Manufacturing
                    • Adhesive Coating
                      • Adhesive Formulation/Mixing
                    Country Serviced / Available In
                    • Global
                      Features / Benefits
                      • PVC Film Backing
                        • Conformable to irregular surfaces
                        • Excellent solvent, chemical, moisture, and abrasion resistance
                        • Excellent for spiral wrapping
                      • Rubber Based Adhesive
                        • Smooth, controlled unwind
                        • Strong bond to smooth and irregular surfaces
                      End Use / Recommended Applications
                      Color coding and striping Identifying safety equipment and hazards Aisle and floor marking Harness wrapping Duct and joint sealing Decorative packaging

                      Spec

                      + Global

                      Berry Catalog SKU
                      152
                      Sample Request AvailableNo

                      + Physical Properties

                      Product ConstructionSingle-Coated Tape
                      Color(s)White. Black. Brown. Red. Orange. Yellow. Green. Blue. Purple

                      + Packaging Data

                      Max Temp Range176-212 °F

                      + Non-Packaging Data

                      OEM / Specification Body & Specification
                      • US Govt/Military
                        • A-A-1689B Type II
                        Gauge / Mil
                        6.0 mil
                        Gauge/Thickness Range5.1 mils to 9.0 mils
                        Carrier / Support / FacestockPVC Film
                        Adhesive TypeRubber
                        Liner TypeNone
                        Peel Strength / Adhesion to Steel
                        18 oz/in
                        Tensile Strength
                        18 lb/in
                        Elongation %
                        250%
                        Operating Temp Range
                        -20 to 176 °F
                        Performance Category / Characteristics
                        • Abrasion Resistance

                          + CPNA

                          Adhesive
                          Rubber
                          Application
                          Color coding ,identification, aisle and floor marking, spiral wrapping, sealing and decorative masking.
                          Brand
                          Patco
                          Carrier
                          PVC
                          Construction
                          Single Coated
                          Features
                          High abrasion resistance. Conforms well to curves. Bonds well to a variety of surfaces. Clean removal.
