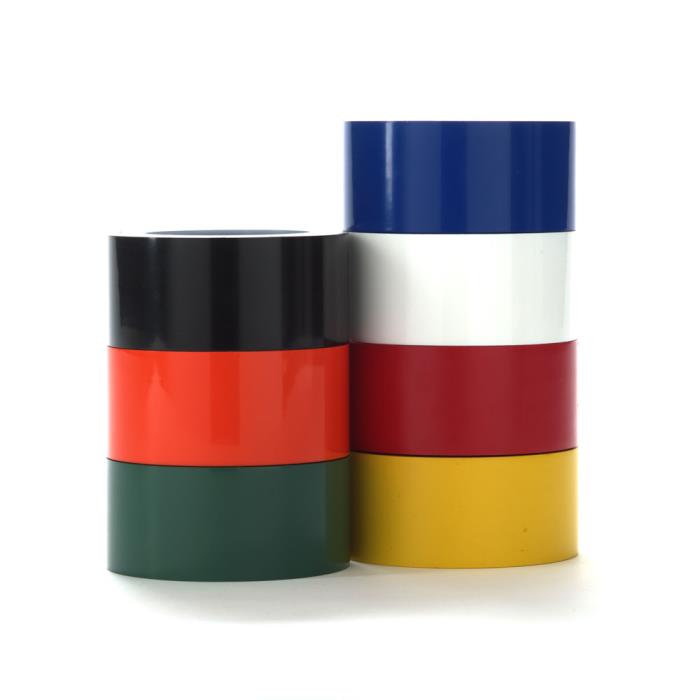

    Patco 503A Polyethylene Film Tape-Colors

    Available self wound or with 53# Kraft Paper Liner.

    Files

    Global

    Standardized Name
    Patco 503A Polyethylene Film Tape - Colors
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Industrial Tape
        • Color Coding & Safety Tape
          • Polyethylene Film Tape
        Brands
        • HHS
          • Patco
          Markets
          • Building & Construction
            • Residential Construction
            • Shipping & Transportation
              • Trucking
                • Warehousing
                • Specialty Other
                  • Custom Converting
                    • MRO Solutions
                    Capabilities
                    • Manufacturing
                      • Tapes Manufacturing
                        • Adhesive Coating
                          • Adhesive Formulation/Mixing
                        Country Serviced / Available In
                        • Global
                          Features / Benefits
                          • LDPE Film
                            • Conformable for irregular surfaces
                            • Excellent moisture barrier properties
                          • Acrylic Adhesive
                            • High adhesion and cohesion
                            • Excellent high and low temperature performance
                            • UV and solvent resistant
                            • Will not crack or crease
                            • Permanent bond with virtually no edge bleed
                            • Excellent long-term aging characteristics
                            • Low in halogens and leachable chlorides
                          End Use / Recommended Applications
                          General purpose sealing. Splicing and seaming. Color coding and aisle marking. Bondbreaker tape. Temporary hold down. Thermal insulation outerwrap. Industrial fabricating applications. Decorative markings and striping.

                          Spec

                          + Global

                          Berry Catalog SKU
                          503A
                          Sample Request AvailableNo

                          + Physical Properties

                          Product ConstructionSingle-Coated Tape
                          Color(s)White. Black. Red. Yellow. Green. Blue

                          + Packaging Data

                          Max Temp Range176-212 °F

                          + Non-Packaging Data

                          Gauge / Mil
                          5.5 mil
                          Gauge/Thickness Range5.1 mils to 9.0 mils
                          Carrier / Support / FacestockPE (Polyethylene) Film
                          Adhesive TypeAcrylic
                          Liner TypeNone
                          Tensile Strength
                          11 lb/in
                          Elongation %
                          400%
                          Operating Temp Range
                          -40 to 190 °F
                          Performance Category / Characteristics
                          • UV Resistance
                            • Moisture/Water Resistance
                              • Hand tearable

                                + CPNA

                                Adhesive
                                Acrylic
                                Application
                                Excellent for decorative markings, color coding, striping, aisle marking, and as a protective overlaminate. Thermal insulation outer wrap.
                                Brand
                                Patco
                                Carrier
                                Polyethylene
                                Construction
                                Single Coated
                                Features
                                Excellent moisture barrier. Excellent long-term aging. Provides a permanent seal indoors or outside. Will not crack or craze after extended exposure.
