Visqueen Ultimate Geoseal

    Quick ContactPrint
    Visqueen Ultimate Geoseal

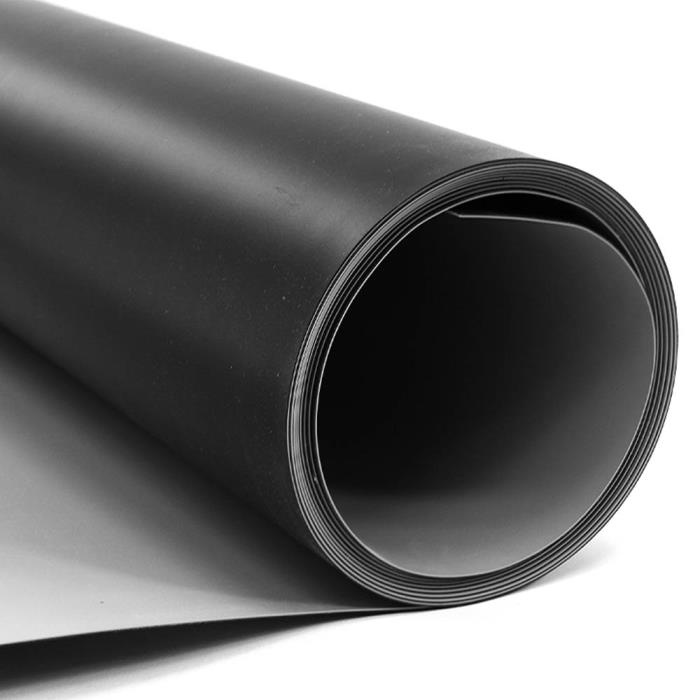

    Visqueen Ultimate Geoseal is a 1mm thick, robust and chemically co-extruded product, that is hydrocarbon, volatile organic compound (VOC) and a gas resistant waterproofing membrane. It is coloured grey on the upper surface and black on the reverse. The grey surface is textured to aid adhesion to cast concrete.

    Files

    Global

    Standardized Name
    Visqueen Ultimate GeoSeal
    Berry Global EntityEM
    Products
    • Building Materials
      • Infrastructure
        • Gas Protection
          • Structural Waterproofing
        Brands
        • EMO
          • Visqueen®
          Markets
          • Building & Construction
            • Infrastructures
              • Commercial Construction
                • Prefabricated & Temporary Structures
                  • Renovation & Restoration
                    • Residential Construction
                    Country Serviced / Available In
                    • Europe
                      Features / Benefits
                      • Agrement certified - third party accreditation
                      • Complies with CIRIA C748:2014 - industry standard for volatile organic compounds (VOC) protection
                      • Complies with BS 8485:2015 + A1:2019 - industry standard for methane and carbon dioxide protection
                      • Type A Barrier Membrane (Tanking Membrane) - resistant to ground water in accordance with BS 8102:2009
                      • High resistance to puncture - greatly reduces risk of barrier becoming damage during the build process
                      • Multi functional - also acts as a radon and damp proof membrane
                      • Dual jointing methods - lap joints can be taped or heat welded
                      End Use / Recommended Applications
                      Visqueen Ultimate GeoSeal is a pre-applied fully bonded Type A Barrier Membrane (Tanking Membrane) for use with below ground reinforced concrete structures e.g. basements, retaining walls, lift pits and car parks. The barrier also prevents the ingress of harmful levels of volatile organic compounds (VOCs) and hazardous ground gases.

                      Visqueen Ultimate GeoSeal

                      + Global

                      Sample Request AvailableYes

                      + Physical Properties

                      Width2.44 m
                      Length41 m
                      Color(s)Black. Grey
                      MaterialPlastic. Plastic - PE

                      + Non-Packaging Data

                      Gauge / Basis Weight97 g
                      Performance Category / Characteristics
                      • Moisture/Water Resistance
                        Core Type
                        Cardboard

                        See also

                        Visqueen IGW Admix

                        Visqueen IGW Admix is a crystalline waterproofing admixture powder consisting of a blend of specially selected chemicals. The Admix is suitable for CEM I (100% cement content) and CEM II (up to 35% cement replacement) mixes. When combined with ready mix concrete at batching plant, it produces a crystalline reaction which enhances water resistance and durability of the cured concrete. The product is available in a tub consisting of six 4.1 kg soluble bags and used in the ratio of 1:1 i.e. one 4.1kg bag for each 1m³ of concrete.
