    Visqueen Preformed Units (PFUs)

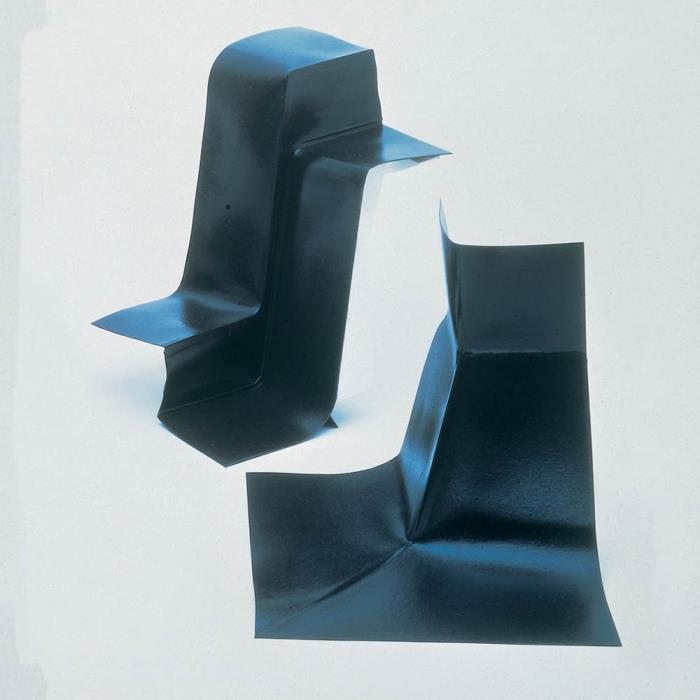

    Visqueen Preformed Units (PFUs) are factory manufactured three dimensional shapes. The units are formed from either Visqueen Zedex CPT High Performance DPC (Zedex Units) or Visqueen Ultimate HC Blok (Ultimate Units).

    Files

    Global

    Standardized Name
    Visqueen Preformed Units (PFUs)
    Berry Global EntityEM
    Products
    • Building Materials
      • Weather Resistant Barrier
        • Damp Proofing
      Brands
      • EMO
        • Visqueen®
        Markets
        • Building & Construction
          • Commercial Construction
            • Prefabricated & Temporary Structures
              • Renovation & Restoration
                • Residential Construction
                Country Serviced / Available In
                • United Kingdom, The
                  • Europe
                    • United Kingdom, The
                    Features / Benefits
                    • Factory manufactured - reduces the risk of water ingress
                    • Three dimensional shapes - simplifies complex detailing
                    • Flexible materials - easy to install on site
                    • Extensive range - ideal for built-in and surface fixed cavity tray applications
                    • Versatile - suitable for both damp and gas proofing applications
                    • BBA/BDA certified - third party certifications
                    • Cost effective - speeds up installation on site
                    • Multi-functional - compatible with all Visqueen damp and gas proof courses and membranes
                    End Use / Recommended Applications
                    Visqueen Preformed Units are suitable for detailing complex or awkward junctions in masonry wall applications including residential, commercial and multi storey buildings. The units can also be used for complex junctions associated with membrane applications within floor constructions, e.g. door thresholds and corners etc. The units can also be used to prevent harmful ground gases from entering into the building at the above junctions.

                    Visqueen Preformed Units

                    Files

                    + Global

                    Sample Request AvailableYes

                    + Physical Properties

                    Color(s)Black
                    MaterialPlastic - PE

                    + Non-Packaging Data

                    Performance Category / Characteristics
                    • Moisture/Water Resistance
                      WVTR (Water Vapor Transmission Rate)
                      0.04 - 0.13g/m²/day
                      Core Type
                      Cardboard

                      See also

                      Visqueen Zedex Non-Combustible Damp Proof Course

                      Visqueen Zedex Non-Combustible Damp Proof Course (DPC) achieves a reaction to fre classifcation A2 - s1, d0 which is denoted as non-combustible in the UK Government's Ministry of Housing, Communities and Local Government Advice for Building Owners of Multi-storey, Multi-occupied Residential Buildings, section 1.17 and 1.18 (January 2020). The product is compliant with the requirements of The Building Regulations 2010 (England and Wales) (as amended) and The Building (Scotland) Regulations 2004 (as amended). The DPC is a flexible 0.6mm composite damp proof course and cavity tray system. It is supplied in 20m length rolls and the following standard widths: 300mm, 450mm, 500mm, 600mm, 700mm, 800mm and 900mm. Other widths are available on request.
