    Visqueen Zedex Housing Grade Damp Proof Course

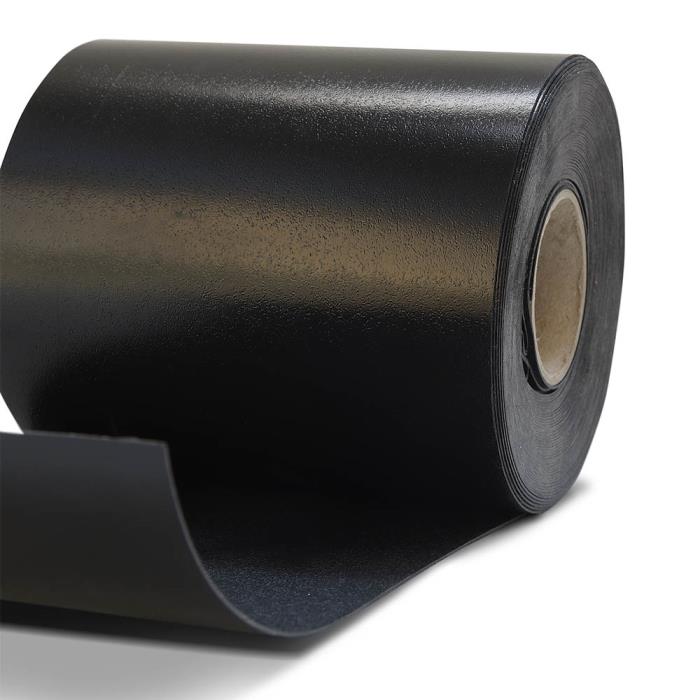

    Visqueen Zedex Housing Grade Damp Proof Course (DPC) is a black, fexible 0.6mm damp proof course and cavity tray system. It is supplied in 20m length rolls and the following widths: 100mm, 112.5mm, 150mm, 225mm, 300mm, 337.5mm, 450mm, 600mm, 750mm and 900mm.

    Files

    Global

    Standardized Name
    Visqueen Zedex Housing Grade Damp Proof Course
    Berry Global EntityEM
    Products
    • Building Materials
      • Weather Resistant Barrier
        • Damp Proofing
      Brands
      • EMO
        • Visqueen®
        Markets
        • Building & Construction
          • Commercial Construction
            • Prefabricated & Temporary Structures
              • Renovation & Restoration
                • Residential Construction
                Country Serviced / Available In
                • United Kingdom, The
                  • Europe
                    • United Kingdom, The
                    Features / Benefits
                    • BBA certified - third party accreditation
                    • Flexible cavity tray system - easy to detail and install on site
                    • Good tear resistance - robust and resistant to on site damage
                    • Versatile applications - widths from 100mm to 900mm
                    • Visqueen Preformed Units available - simplifies complex or awkward detailing
                    End Use / Recommended Applications
                    Visqueen Zedex Housing Grade Damp Proof Course is suitable for residential masonry applications up to 3 storeys high. It can be site formed into a built-in or surface fixed cavity tray to manage the downward passage of water in cavity wall applications. The DPC should be fully support along its length i.e. supported by the lintel. The DPC can also be used on sleeper walls below a ground floor construction e.g. beam and block floor system.

                    Visqueen Zedex High Bond Damp Proof Course

                    Files

                    + Global

                    Sample Request AvailableYes

                    + Physical Properties

                    Length8 m
                    Color(s)Black
                    MaterialPlastic - PE

                    + Non-Packaging Data

                    Gauge / Mil
                    3mm
                    Performance Category / Characteristics
                    • Moisture/Water Resistance
                      WVTR (Water Vapor Transmission Rate)
                      0.37 g/m²/d
                      Core Type
                      Cardboard

                      See also

                      Visqueen Zedex Non-Combustible Damp Proof Course

                      Visqueen Zedex Non-Combustible Damp Proof Course (DPC) achieves a reaction to fre classifcation A2 - s1, d0 which is denoted as non-combustible in the UK Government's Ministry of Housing, Communities and Local Government Advice for Building Owners of Multi-storey, Multi-occupied Residential Buildings, section 1.17 and 1.18 (January 2020). The product is compliant with the requirements of The Building Regulations 2010 (England and Wales) (as amended) and The Building (Scotland) Regulations 2004 (as amended). The DPC is a flexible 0.6mm composite damp proof course and cavity tray system. It is supplied in 20m length rolls and the following standard widths: 300mm, 450mm, 500mm, 600mm, 700mm, 800mm and 900mm. Other widths are available on request.
