    Visqueen Low Permeability Gas Membrane

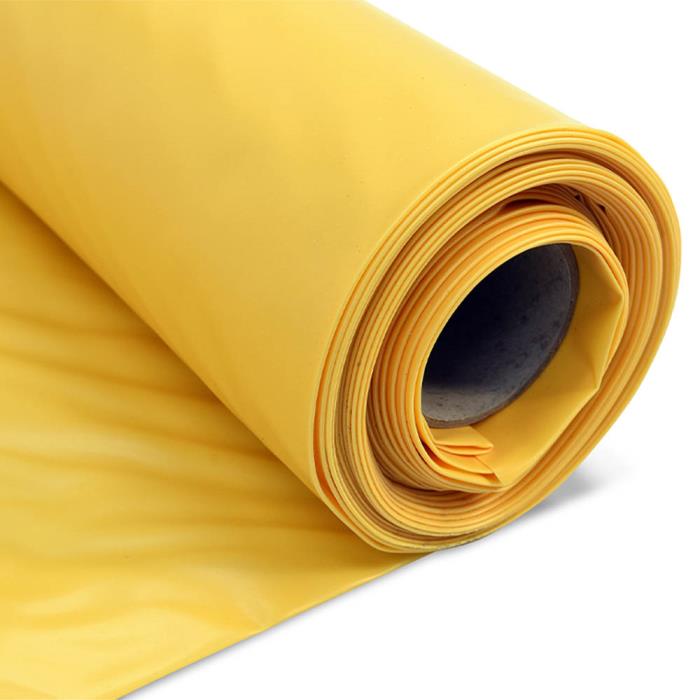

    Visqueen Low Permeability Gas Membrane is a robust co-polymer thermoplastic gas membrane, 0.5mm thick, yellow in colour and supplied 4m x 12.5m in a center folded roll.

    Files

    Global

    Standardized Name
    Visqueen Low Permeability Gas Membrane
    Berry Global EntityEM
    Products
    • Building Materials
      • Infrastructure
        • Gas Protection
      Brands
      • EMO
        • Visqueen®
        Markets
        • Building & Construction
          • Commercial Construction
            • Prefabricated & Temporary Structures
              • Renovation & Restoration
                • Residential Construction
                Country Serviced / Available In
                • United Kingdom, The
                  • Europe
                    • United Kingdom, The
                    Features / Benefits
                    • BBA certified - third party accreditation
                    • Complies with NHBC Amber 1 - suitable for low gas risk NHBC housing sites
                    • Flexible - easy to detail and install on site
                    • Supplied centre folded - reduces the risk of cracks in screed and limits creases
                    • Multi functional - also acts as a radon and damp proof membrane
                    • Dual jointing methods - lap joints can be taped or heat welded
                    End Use / Recommended Applications
                    Visqueen Low Permeability Gas Membrane is suitable to prevent the ingress of harmful levels of ground gases for housing applications where NHBC are the warranty provider and the site has been classified as Amber 1. In this application, the membrane is used above a precast suspended segmental ground floor system, for example a beam and block floor. The membrane can also be used as a high performance radon membrane and/or damp proof membrane positioned within the ground floor construction either above or below the structural floor.

                    Visqueen Low Permeability Gas Membrane

                    + Global

                    Sample Request AvailableYes

                    + Physical Properties

                    Width4 m
                    Length12.5 mm
                    Color(s)Yellow
                    MaterialPlastic - PE

                    + Non-Packaging Data

                    Gauge / Mil
                    0.5mm
                    WVTR (Water Vapor Transmission Rate)
                    0.08 g/m²/day
                    Core Type
                    Cardboard
                    Fold (Sheeting)
                    Center folded
