Polyken 3590A Double-Coated Tape

    Quick ContactPrint
    Polyken 3590A Double-Coated Tape

    Double-Coated Tape

    Files

    Global

    Standardized Name
    Polyken 3590A Double-Coated Tape
    Berry Global EntityHHS Tape
    Products
    • Tapes & Adhesives
      • Medical Tape
      Brands
      • HHS
        • Polyken
        Markets
        • Healthcare
          • Medical Components
          • Specialty Other
            • Custom Converting
            Capabilities
            • Manufacturing
              • Tapes Manufacturing
                • Adhesive Coating
              Country Serviced / Available In
              • Global
                Features / Benefits
                • Polyester Film Carrier
                  • Support for aid in processing and application
                  • Easily conforms to various surface types
                • Non-Sensitizing Acrylic Adhesive
                  • High tack and good shear properties
                  • Stable to EtO and gamma sterilization
                •  76lb PC Bleached Kraft Liner
                  • Low COF for hand apply applications
                  • Good dimensional stability and moisture
                    resistance

                Spec

                + Global

                Berry Catalog SKU
                3590A
                Sample Request AvailableNo

                + Physical Properties

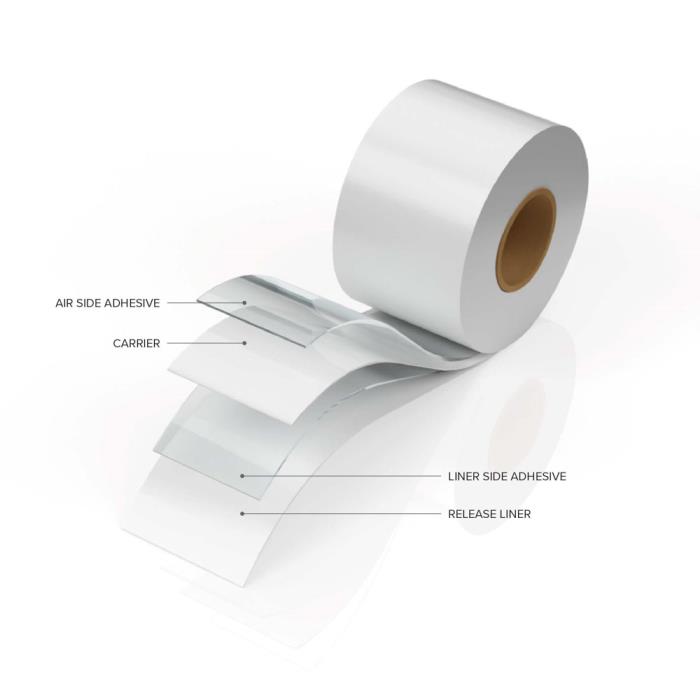

                Product ConstructionDouble-Coated Tape
                Color(s)White

                + Packaging Data

                Max Temp Range176-212 °F

                + Non-Packaging Data

                Gauge / Mil
                8.8 mil
                Gauge/Thickness Range5.1 mils to 9.0 mils
                Carrier / Support / FacestockPET (Polyester) Film
                Carrier Thickness (mil)
                0.5 mil
                Adhesive TypeAcrylic
                Air-Side Adhesive Thickness (mil)
                1.4 mil
                Adhesive Type (Liner Side)Acrylic
                Liner Side Adhesive Thickness (mil)
                1.4 mil
                Liner TypeCoated Kraft Paper
                Peel Strength / Adhesion to Steel
                130 oz/in
                Peel Strength / Adhesion to Steel (Liner Side)
                145 oz/in
                Shear Strength (Air Side)
                <24 hours
                Laminating Temp Range
                50 to 150F

                + Markets and Manufacturing Data

                MarketHealth
                Market - SegmentMedical, Diagnostics

                + CPNA

                Application
                Electrodes: EKG, ECG, TENS. Medical device assembly and attachment.
                Brand
                Polyken
                Carrier
                PE Foam
                Carrier Thickness
                1/16"
                Construction
                Double Coated
                Features
                Soft and flexible PE foam carrier for maximum patient comfort. Adapts easily to medical device and body contours. High tack non-sensitizing acrylic adhesive offers excellent shear strength. EtO and Gamma sterilization stable.
                Laminating Adhesive Description
                Acrylic - Non-Sensitizing
                Liner
                60# SCK C2S
                Liner Thickness
                5.5 mil
