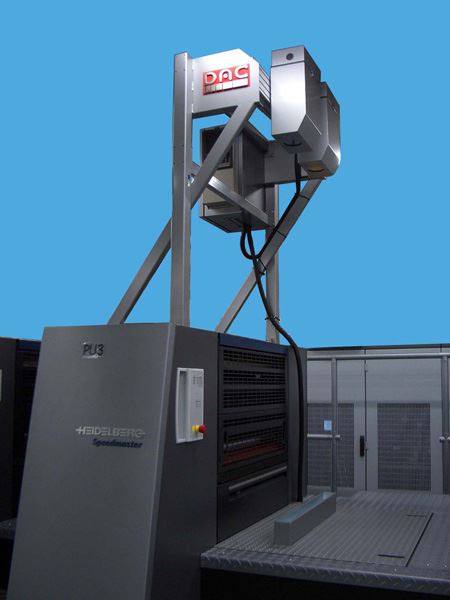

    Online Sheet-fed Inspection System

    Quick ContactPrint
    Online Sheet-fed Inspection System

    Online Sheet-fed Inspection System is the No. 1 delivery record for paper package industry.

    Patented high accurate inspection (1 pixel x 1 pixel), is possible by Sheet ABS as sheet stabilizer (patented) and high resolution camera for thin paper, heavy paper, corrugated board and metal printing.

    Application

    Online inspection system dedicated to offset sheet-fed and package industry

    Features

    • Clear image by self-developed 3 CCD camera with low noise & high contrast
    • Patent granted! Sheet stabilizing system "Sheet ABS" for an accurate ON-cylinder inspection
    • Self-developed optic technology! Special lighting system for an inspection of normal and metalized paper

    Trinity Well SLC702M (2cameras)

    Online Sheet-fed Inspection System

    Overview

    Reference
    Trinity Well SLC702M (2cameras)
    Machine TypeMachinery

    General

    Detailed Description

    Basic specification

    Model

    Trinity Well SLC702M
    (2cameras)
    Camera specification

    2048 pixels
    Camera can be added up to 16 cameras for both side
    Camera type

    CCD-3LINE (SLC7 series)
    or 3CCD (SLC9 series)
    Min. resolution

    0.26mm/ pixel
    Inspection speed

    18,000 sheets/h *Depends on spec of printing press
    Inspection target

    Sheet-fed paper
    Metalized paper, transparent PP paper, special paper
    Lighting source

    Special lighting system
    Self-developed lighting system by high frequency lighting fluorescent lamp and ultrabright LED lighting source
    Stabilizing sheet surface

    SheetABS system
    Paper thickness from 0.04 to 1.0mm
    Target defect

    Hickey, Ink spatter, pinhole, incomplete text,
    color variation, oil spot, scumming, etc.
    Detection circuit

    8 circuits Repeat defect, Dense defect
    Defect filing

    Store 6-8 defects per 1 sheet
    Features

    Sheet shifting tolerance, position correction,
    multiple master image,
    Inspection frame function for partial inspection sensitivity setting,
    Color density monitoring function,
    Interactive user-friendly operation by touch panel
    Option

    Tape inserter, Quality management system Gallery

    Trinity Well SLC703M (3cameras)

    Online Sheet-fed Inspection System

    Overview

    Reference
    Trinity Well SLC703M (3cameras)
    Machine TypeMachinery

    General

    Detailed Description

    Basic specification

    Model

    Trinity Well SLC703M
    (3cameras)
    Camera specification

    2048 pixels
    Camera can be added up to 16 cameras for both side
    Camera type

    CCD-3LINE (SLC7 series)
    or 3CCD (SLC9 series)
    Min. resolution

    0.18mm/ pixel
    Inspection speed

    18,000 sheets/h *Depends on spec of printing press
    Inspection target

    Sheet-fed paper
    Metalized paper, transparent PP paper, special paper
    Lighting source

    Special lighting system
    Self-developed lighting system by high frequency lighting fluorescent lamp and ultrabright LED lighting source
    Stabilizing sheet surface

    SheetABS system
    Paper thickness from 0.04 to 1.0mm
    Target defect

    Hickey, Ink spatter, pinhole, incomplete text,
    color variation, oil spot, scumming, etc.
    Detection circuit

    8 circuits Repeat defect, Dense defect
    Defect filing

    Store 6-8 defects per 1 sheet
    Features

    Sheet shifting tolerance, position correction,
    multiple master image,
    Inspection frame function for partial inspection sensitivity setting,
    Color density monitoring function,
    Interactive user-friendly operation by touch panel
    Option

    Tape inserter, Quality management system Gallery
