    Offline Sheet-fed Inspection System

    Quick ContactPrint

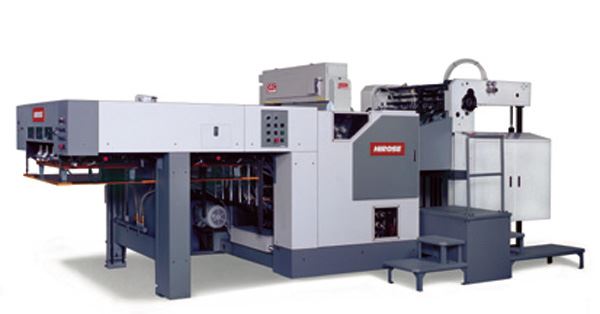

    Offline Sheet-fed Inspection System

    Offline Sheet-fed Inspection System is the No.1 delivery record of offline sheet-fed inspection system in package industry.

    Dedicated feeder for high accurate & high precise inspection by a cylinder delivery with the same technology as printing press.

    OK sheet and NG sheet can be sorted by a delivery.

    Application

    Offline inspection system dedicated to offset sheet-fed fand package industry

    Features

    • 100% inspection from thin paper to heavy paper
    • Special paper such as aluminum metalized paper and PP paper can fully be inspected.
    • Number of camera can be selected depending on quality requirement.
    • OK sheet and NG sheet can be sorted by double delivery.
    • Both sides can be inspected with 1 inspection system on a dedicated inspection cylinder.

    Trinity Well SLC703M (3cameras)

    Offline Sheet-fed Inspection System

    Overview

    Reference
    Trinity Well SLC703M (3cameras)
    Machine TypeMachinery

    General

    Detailed Description

    Basic specification

    Model

    Trinity Well SLC703M
    (3cameras)
    Camera specification

    2048 pixels
    Camera can be added up to 16 cameras for both side
    Camera type

    CCD-3LINE (SLC7 series)
    or 3CCD (SLC9 series)
    Min. resolution

    0.18mm/ pixel


    Inspection speed

    12,000 sheets/h *Depends on a machine spec
    Inspection target

    Sheet-fed paper
    Metalized, transparent PP sheet, special paper
    Lighting source

    Hgh frequency lighting fluorescent lamp and ultrabright LED lighting source
    Stabilizing sheet surface

    Inspection on a dedicated inspection cylinder
    Target defect

    Hickey, Ink spatter, pinhole, incomplete text,
    color variation, oil spot, scumming, etc.
    Detection circuit

    8 circuits Repeat defect, Dense defect
    Defect filing

    Store 6-8 defects per 1 sheet
    Features

    Sheet tolerant, position correction,
    multiple master image,
    Inspection frame function for partial inspection sensitivity setting,
    Color density monitoring function,
    Interactive user-friendly operation by touch panel
    Option

    Quality management system Gallery

    Trinity Well SLC704M (4cameras)

    Offline Sheet-fed Inspection System

    Overview

    Reference
    Trinity Well SLC704M (4cameras)
    Machine TypeMachinery

    General

    Detailed Description

    Basic specification

    Model

    Trinity Well SLC704M
    (4cameras)
    Camera specification

    2048 pixels
    Camera can be added up to 16 cameras for both side
    Camera type

    CCD-3LINE (SLC7 series)
    or 3CCD (SLC9 series)
    Min. resolution

    0.13mm/ pixel
    Inspection speed

    12,000 sheets/h *Depends on a machine spec
    Inspection target

    Sheet-fed paper
    Metalized, transparent PP sheet, special paper
    Lighting source

    Hgh frequency lighting fluorescent lamp and ultrabright LED lighting source
    Stabilizing sheet surface

    Inspection on a dedicated inspection cylinder
    Target defect

    Hickey, Ink spatter, pinhole, incomplete text,
    color variation, oil spot, scumming, etc.
    Detection circuit

    8 circuits Repeat defect, Dense defect
    Defect filing

    Store 6-8 defects per 1 sheet
    Features

    Sheet tolerant, position correction,
    multiple master image,
    Inspection frame function for partial inspection sensitivity setting,
    Color density monitoring function,
    Interactive user-friendly operation by touch panel
    Option

    Quality management system Gallery
