    Gravure Print Inspection System Crossover series (Limited model)

    Quick ContactPrint
    Gravure Print Inspection System Crossover series (Limited model)

    Application

    Gravure Print Inspection System for flexible packaging industry

    Features

    • Industry's first! Controller-less unit!
    • 3-touch operation - Amazing user-friendliness!
    • Industry's fastest automatic setting!
    • Newly developed special detection circuit and powerful image stabilizer
    • Competitive pricing

    XLC401(600) 1 camera

    Gravure Print Inspection System Crossover series (Limited model)

    Overview

    Reference
    XLC401(600) 1 camera
    Reference - Sub
    Gravure Print Inspection System Crossover series (Limited model)
    Machine TypeMachinery

    General

    Detailed Description

    Basic specification

    Model

    XLC401(600)
    1 camera


    Inspection material

    Film
    (Please let us discuss about aluminum separately.)
    Material width

    Max.600mm
    Camera

    4096pixels
    70mHz Full color digital line sensor camera x 2
    (XLC401 1 camera)
    Inspection speed

    Max. 240m/min.(F type: Max 300m/min)
    Min. resolution
    Camera resolution (Width)

    0.15mm
    Camera resolution
    (Running dir.)

    0.30mm(For F type: 0.375mm)
    Defect type

    Hazing, steak, string, broken text, foreign material, others
    Defect filing

    Max.100 images/sec (Blink method, auto sorting by defect size)
    Inspection method

    Full color inspection Fix mode / Study mode

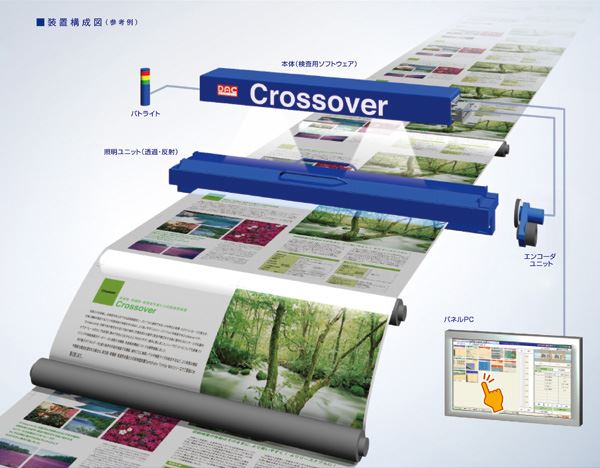

    System component

    Main unit x1, Inspection software x1, PC x1,
    Touch panel monitor x1, ,
    LED lighting unit x1(2 sets of reflection light, 1 set of transparent light),
    Encoder unit,Signal tower x1, 1 set of cables for unit,
    1 set of PC unit
    Option

    Ink jet printer, Label marker,
    Quality management software, Gallery, Monitor arm

    XLC402(1200) 2 cameras

    Gravure Print Inspection System Crossover series (Limited model)

    Overview

    Reference
    XLC402(1200) 2 cameras
    Reference - Sub
    Gravure Print Inspection System Crossover series (Limited model)
    Machine TypeMachinery

    General

    Detailed Description

    Basic specification

    Model

    XLC402(1200)
    2 cameras
    Inspection material

    Film
    (Please let us discuss about aluminum separately.)
    Material width

    Max.1200mm
    Camera

    4096pixels
    70mHz Full color digital line sensor camera x 2
    (XLC401 1 camera)
    Inspection speed

    Max. 240m/min.(F type: Max 300m/min)
    Min. resolution
    Camera resolution (Width)

    0.15mm
    Camera resolution
    (Running dir.)

    0.30mm(For F type: 0.375mm)
    Defect type

    Hazing, steak, string, broken text, foreign material, others
    Defect filing

    Max.100 images/sec (Blink method, auto sorting by defect size)
    Inspection method

    Full color inspection Fix mode / Study mode
    System component

    Main unit x1, Inspection software x1, PC x1,
    Touch panel monitor x1, ,
    LED lighting unit x1(2 sets of reflection light, 1 set of transparent light),
    Encoder unit,Signal tower x1, 1 set of cables for unit,
    1 set of PC unit
    Option

    Ink jet printer, Label marker,
    Quality management software, Gallery, Monitor arm

    XLC402(1300) 2 cameras

    Gravure Print Inspection System Crossover series (Limited model)

    Overview

    Reference
    XLC402(1300) 2 cameras
    Reference - Sub
    Gravure Print Inspection System Crossover series (Limited model)
    Machine TypeMachinery

    General

    Detailed Description

    Basic specification

    Model

    XLC402(1300)
    2 cameras
    Inspection material

    Film
    (Please let us discuss about aluminum separately.)
    Material width

    Max.1300mm
    Camera

    4096pixels
    70mHz Full color digital line sensor camera x 2
    (XLC401 1 camera)
    Inspection speed

    Max. 240m/min.(F type: Max 300m/min)
    Min. resolution
    Camera resolution (Width)

    0.16mm
    Camera resolution
    (Running dir.)

    0.30mm(For F type: 0.375mm)
    Defect type

    Hazing, steak, string, broken text, foreign material, others
    Defect filing

    Max.100 images/sec (Blink method, auto sorting by defect size)
    Inspection method

    Full color inspection Fix mode / Study mode
    System component

    Main unit x1, Inspection software x1, PC x1,
    Touch panel monitor x1, ,
    LED lighting unit x1(2 sets of reflection light, 1 set of transparent light),
    Encoder unit,Signal tower x1, 1 set of cables for unit,
    1 set of PC unit
    Option

    Ink jet printer, Label marker,
    Quality management software, Gallery, Monitor arm
