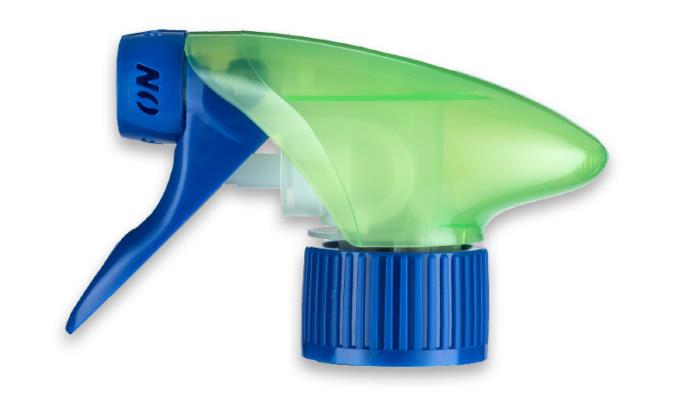

    TS5 Spray System

    Quick ContactPrint
    TS5 Spray System

    Guala’s introduction of bellow technology by a special compound of polyolephin grants an output of 1.3 ml despite its low weight

    1.25 ml Dispenser

    TS5 innovative compact engine provides real pre-compression combined with low actuation force and ergonomic design up to a 1.25ml output

    Overview

    Packaging TypeCaps, Lids. Dispensing Closures
    Packaging Sub-TypeScrew On Closure. Sprays. Sprays - Trigger
    Market - MajorBeauty, Personal Care. Home Care
    Market - SegmentPersonal Care. Fragrances. Cleaning. Automotive
    Market - End UseSun Care. Skin Care. Teen Fragrances. Surface Cleaning. Car Fragrances
    CertificationsISO Certifications

    Characteristics

    MaterialsPlastic
    FeaturesChild-Proofing, CP
    Feature Notes

    TS5 is certified in compliance with international ISO 8317. TS5 CRP incorporates: a nozzle block, a specific “double action” mode of operation in order to prevent further children opening; the ratcheted screw collar paired with the proper ratcheted bottle will ensure a compliant Child Resistant Package.

    TS5 was designed with a new eco-friendly approach fully complying with European Ecolabel requirements for packages: 100% plastic with use of in-house recycled material, reduction of weight, increase of durability to sustain refill use.

    Neck

    Neck Diameter28 mm
    Neck Threads410
    Neck Finish
    Customized screw collars are available in 28/410 and CRP

    Dispensing

    Dispensing/Dosing Volume1.25 ml
    Dispensing/Dosing Notes

    TS5 engine offers a wide chemical compatibility for dispensing standard household liquids up to aggressive and high viscosity formulations

    Spray Medium

    The size of particles, dose and spray pattern can be targeted to the specific needs of the product to be dispensed

    Overview

    Reference - Sub
    Spray Medium 170 ± 30 mm
    Packaging TypeDispensing Closures
    Packaging Sub-TypeNozzles
    Market - MajorBeauty, Personal Care. Home Care
    Market - SegmentPersonal Care. Cleaning
    Market - End UseSkin Care. Surface Cleaning

    Characteristics

    MaterialsPlastic

    Dimensions

    Width170 mm
    Diameter30 mm

    Dispensing

    Dispensing/Dosing Notes

     39°/53°

    Spray Narrow

    The size of particles, dose and spray pattern can be targeted to the specific needs of the product to be dispensed

    Overview

    Reference - Sub
    Spray Narrow 140 ± 30 mm
    Packaging TypeDispensing Closures
    Packaging Sub-TypeNozzles
    Market - MajorBeauty, Personal Care. Home Care
    Market - SegmentPersonal Care. Cleaning
    Market - End UseSkin Care. Surface Cleaning

    Characteristics

    MaterialsPlastic

    Dimensions

    Width140 mm
    Diameter30 mm

    Dispensing

    Dispensing/Dosing Notes

     31°/46°

    Spray Stream

    The size of particles, dose and spray pattern can be targeted to the specific needs of the product to be dispensed

    Overview

    Reference - Main
    Jet Stream
    Reference - Sub
    Spray Stream 170 ± 30 mm
    Packaging TypeDispensing Closures
    Packaging Sub-TypeNozzles
    Market - MajorBeauty, Personal Care. Home Care
    Market - SegmentPersonal Care. Cleaning
    Market - End UseSkin Care. Surface Cleaning

    Characteristics

    MaterialsPlastic

    Dimensions

    Width170 mm
    Diameter30 mm

    Dispensing

    Dispensing/Dosing Notes

    39°/53°

    Spray Wide

    The size of particles, dose and spray pattern can be targeted to the specific needs of the product to be dispensed

    Overview

    Reference - Sub
    Spray Wide 220 ± 30 mm
    Packaging TypeDispensing Closures
    Packaging Sub-TypeNozzles
    Market - MajorBeauty, Personal Care. Home Care
    Market - SegmentPersonal Care. Cleaning
    Market - End UseSkin Care. Surface Cleaning

    Characteristics

    MaterialsPlastic

    Dimensions

    Width220 mm
    Diameter30 mm

    Dispensing

    Dispensing/Dosing Notes

    45°/60°

    Foamer V15

    The size of particles, dose and spray pattern can be targeted to the specific needs of the product to be dispensed

    Overview

    Reference - Sub
    Foam V15 100 ± 30 mm
    Packaging TypeDispensing Closures
    Packaging Sub-TypeFoamers
    Market - MajorBeauty, Personal Care. Home Care
    Market - SegmentPersonal Care. Cleaning
    Market - End UseSkin Care. Surface Cleaning

    Characteristics

    MaterialsPlastic

    Dimensions

    Width100 mm
    Diameter30 mm

    Dispensing

    Dispensing/Dosing Notes

    20°/36°

    Foamer V35

    The size of particles, dose and spray pattern can be targeted to the specific needs of the product to be dispensed

    Overview

    Reference - Sub
    Foam V35 70 ± 30 mm
    Packaging TypeDispensing Closures
    Packaging Sub-TypeFoamers
    Market - MajorBeauty, Personal Care. Home Care
    Market - SegmentPersonal Care. Cleaning
    Market - End UseSkin Care. Surface Cleaning

    Characteristics

    MaterialsPlastic

    Dimensions

    Width70 mm
    Diameter30 mm

    Dispensing

    Dispensing/Dosing Notes

     11°/28°

    Foamer V45

    The size of particles, dose and spray pattern can be targeted to the specific needs of the product to be dispensed

    Overview

    Reference - Sub
    Foam V45 70 ± 30 mm
    Packaging TypeDispensing Closures
    Packaging Sub-TypeFoamers
    Market - MajorBeauty, Personal Care. Home Care
    Market - SegmentPersonal Care. Cleaning
    Market - End UseSkin Care. Surface Cleaning

    Characteristics

    MaterialsPlastic

    Dimensions

    Width70 mm
    Diameter30 mm

    Dispensing

    Dispensing/Dosing Notes

     11°/28°
