Description
- MOSCA-strapping machines are series-produced based on a modular principle
- Sturdy design
- Program-controlled integration in conveyor lines
- Fully automatic horizontal strapping in various height-positions
- Easy TEACH-IN programming
- Designed as two-guide-pillar system, carried out as heavy duty steel construction
- Strap dispenser for slack accumulation and take-up of excess strap
- Easy and fast reloading of coils

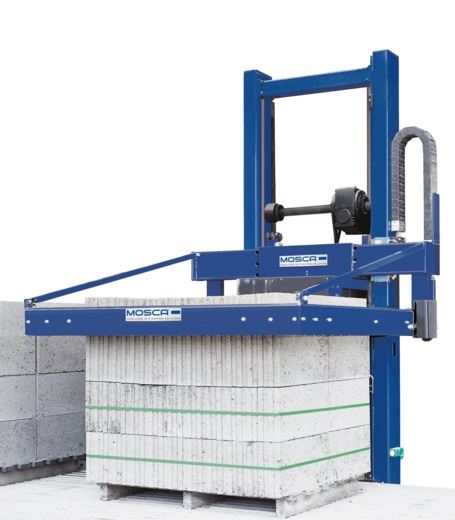

- Particularly suitable machine for automatic strapping of pallet loaded goods of stacked boxes, trays and blocks
- Friction-weld sealing
- Laterally friction-weld sealing
- Heightmoveable, horizontal arch
- Friction-weld sealing unit,moveable laterally to the package
- Operator panel with electrical and electronic controls
- 10 freely configurable programswith up to 10 strapping positions

Variants & Options

- Sealing unit type KSR-2 DC
- Modem for data transfer and teleservice
- Scanning of remaining strap on the reel
- Operator push buttons additionally to/instead of operator panel
- Health & safety equipment according to CE regulation (safety guards)
- Conveying systems
- Triple indication light
- Strap welding device BSG 1
- Strap guide frame floatingly supported
- Climate control (A/C)
- Sealing unit type Sonixs

Technical details

Capacity:
Approx. 10 sec. each horizontal strap, depends on package dimensions

Electricity:
Operating Voltage: 400 V, 50 Hz, 3 PH/ N/ PE

Control Voltage: 24 V DC

Power Consumption: 4.5 kW

Strapping:

Strap Types: Standard machine grade PET straps

Width: 9.5 - 12.5 mm

Strap Tension: 200 - 2,500 N infinitely adjustable

Strap Feed: 4.2 m/s

Passage Width: 2000 mm

Distance of strap guidance: 440 or 625 mm

Weight:
approx. 900 kg
