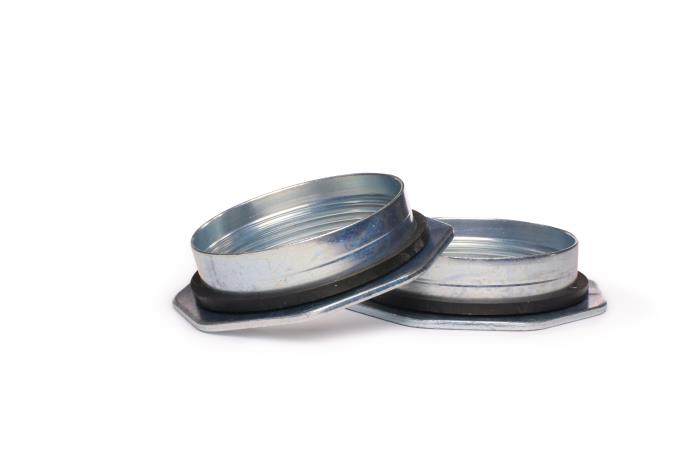

GH-6 Flange
Industrial Chemicals
Overview | |
| Brand Name | TITEGRIP® |
|---|---|
| Rieke Universal Product Code | GH-6 |
| Packaging Type | Drums |
| Market - Major | Home Care. Chemicals, Industrial |
| Market - Segment | Paints, Finishes, Pastes. Automotive |
| Market - End Use | Lubricants, Fluids |
Characteristics | |
| Materials | Plastic |
|---|---|
Dimensions | |
| Diameter | 2 Inches |
|---|---|
Alternative Product Codes | |
| Umbrella Code Link | GH-6 |
|---|---|
| Umbrella Product | Yes |
| Rieke Product Code (or Number) | GH-6 |
| Rieke Minor Code | 905 |
| Rieke Part Number | 09050701 |
Product Descriptions | |
| Short Brochure Description | 2 inch NPS |
|---|---|
| Product Short Description Exceptional strong steel flanges for steel containers | |
| Product Item Description Rieke's exceptional strong flanges are highly engineered with a series of serrations that lock into the drum material upon insertion | |
| Typical Applications 2 inch TITEGRIP Steel Flange | |
Key Features | |
| Key Features I | Innovative design featuring rolled threads rather than cut |
|---|---|
| Key Features II | Various gasket options are available |
| Key Features III | Constructed of a heavy-gauge steel |
| Key Features IV | Electro-plated finish |
| Key Features V | Optional Phenolic or Epoxy Phenolic linings available |
Customer Benefits | |
| Customer Benefits I | Smooth thread connection: Rieke's steel flanges facilitates a smooth thread connection and greatly reduces the chance of contaminating the drum contents with burs or shavings |
|---|---|
| Customer Benefits II | Improved strength: Non-machined, cold-formed neck for improved strength |
Key Information | |
| Product Information I | Size: 2 inch NPS |
|---|---|
| Product Information II | Tite-Grip Steel flange |
| Product Information III | NPS pipe threading |
| Product Information IV | Lining options available |
| Product Information V | Pieces per case: 200 |
| Product Information VI | Gaskets are required |
| Product Information VII | Suitable for 5 gallon steel pails |
Packaging Selection Criteria & Compatibility with Industrial Container Types | |
| Suitable for Plastic Containers | No |
|---|---|
| Suitable for Steel Containers | Yes |
| E-Commerce Ready | No |
| Sustainable Product | No |
| PCR Option Available | No |
| Max PCR % Currently Available | 0 |
Other Specifications | |
| Add on Options 1 | Unplated (Black) |
|---|---|
| Add on Options 2 | Polybagged and twist tied |
| Gasket Options 1 | EPDM |
| Gasket Options 2 | Buna |
| Gasket Options 3 | Poly irradiated |
| Gasket Options 4 | Specialty gaskets available upon request |
| Liner Options 1 | 905 Dark Buff - Epoxy-Phenolic 60/40 |
| Liner Options 2 | 908 Olive - Phenolic 100% |
| Liner Options 3 | 908 LHLT (Tan) Phenolic 100% |
| Liner Options 4 | 908 Clear - Phenolic 100% |
| Liner Options 5 | 958 Dark Red - Phenolic - Epoxy 50/50 |
