Takigawa Catalog


Dream Steam is an innovative packing system using a special valve.
It can be cooked in a microwave without losing any flavor or nutrition.

How it works

"Steam Cooking" by microwave, utilizing the vapor from the food and pressure adjusted by the valve.
The pressure inside the tray is set at 2 bar by the valve.

Merits

Cooking fresh ( not pre-cooked) food

  1. The food can be heated evenly, reaches at 121℃ as maximum.
  2. Since it does not destroy "micro cells" of food, the texture, flavor and nutrition stays as it is.


Easy Lock

Our newly developed “Easy Lock” system is an innovative re-sealable packaging system that uses “micro hook” technology.

Features

  1. Easy to open and close.
  2. Easy to open and close without twisting even if the zipper is not exactly aligned.
  3. Easy to open and close even if there are small particles of food, etc. in the zipper track.

We are proud that our efforts to implement innovative solutions have become more substantial through the development of the flexible "Easy Lock" system.


Stand-up bags that become completely flat on the bottom when contents are added.

Features

  1. Stands stably with light content.
  2. Large internal capacity; uses approximately 12% less film than traditional stand-up pouches.
  3. Packs and displays similar to a box with less wasted shelf face.

Stand-up bags that become completely flat on the bottom when contents are added.

Features

  1. Stands stably with light content.
  2. Large internal capacity; uses approximately 12% less film than traditional stand-up pouches.
  3. Packs and displays similar to a box with less wasted shelf face.

Front Zip

What sets these bags apart from traditional zipper bags is how easy they are to fill. Front Zip bags can be filled by regular filling machines easily. ?Low incidence of defective products that comes with the "front zip" design does result in increased productivity.

Features

  1. Zipper opening / closing is unnecessary upon filling.
  2. No zipper failure for powdery products filling
  3. Can be filled by regular automatic filling machines.
  4. Easily opened by peeling off the front strip.

Uniquely shaped bags can be designed according to your preferences.

Features

  1. Can be filled by regular automatic filling machines.
  2. Zipper can be added to any shape.

Polyethylene Film Tubes

A flexible combination of strength and lightness.

Polyethylene is widely used as a basic material that supports many industries.
We control the film thickness deviation very presicely with APC(auto profile control).

LDPE film tubes

Our products cover all LDPE film applications?from its general, industrial uses as a wrapping material for food, textiles, pharmaceutical and hygiene products and miscellaneous goods, to its use in various kinds of laminated products.
Product Specifications
General width of polyethylene film: 700 mm to 1600 mm
Thickness: 30μ to 160μ


Polyethylene film for lamination

Film formed by the inflation method and reinforced through lamination with all kinds of base materials.
Product Specifications
Width: 520 mm to 1600 mm
Thickness: 30μ to 120μ (Film can be formed in units of 5μ)


L-LDPE film

LL-L Type:
Has excellent hot tack and low-temperature sealing properties, enabling an extra reliable seal. Suitable for use in high-performance liquid filling and widely used as a substitute for EVA film.
TLL-L Type:
Offers more transparency [Haze: 6 for 50μ (measurement example)] than the LL-L type, as well as excellent flexibility and low-temperature sealing.
LL-D Type:
A general-purpose film widely used as a sealant backing material for automatic filling and bag manufacturing. Can be used in hot-water treatments as high as 90 to 100 degrees Celsius.
LL-H Type:
Strong tensile strength and excellent resistance for heat and oil. ?Can be used in hot-water treatments up to semi-retort temperatures (100-105°C).

Polyethylene Shrink Wrap

Securely wraps even heavy items.
Our shrink wrap tightly wraps products, taking advantage of the special properties of the film itself through our development of unique technologies.


Polyethylene Shrink Wrap: Features

1.Perfect for assembly packaging

Polyethylene’s toughness, flexibility and resistance against cold temperatures as low as minus 30 degrees Celsius make it suitable as a packaging material for heavy goods.

2.Low-temperature shrinking available with energy-saving T type

Minimizes the effect on contents by lowering the heat for shrinking.




Our company began manufacturing polypropylene rolls ahead of the rest of the industry and the first to successfully develop eco-friendly products and plastic film in line with the Law on Promoting Green Purchasing. We always strive to provide environmentally-friendly products.

IPP tubes

Used in a wide range of contexts?as a packaging material for food like bread and pastries, office supplies, and industrial materials. Can also be used for embossing and matte finishing at the time of film formation.

Product Specifications
Width: 70 mm to 630 mm
Thickness: 25μ to 60μ

CPP film

Taking advantage of this film’s excellent transparency, we use it as a material for plastic files. Can be used for clear, non-glare matte finishes and embossing at the time of film formation. Please select options according to the film’s intended application.

Product Specifications

Max. width: 1,500 mm
Thickness: 50μ to 150μ

Hi-Clear (HC)

With an even greater degree of transparency than CPP film, Hi-Clear film is used for card holders and as a substitute for vinyl chloride in case covers for video tapes, DVDs and discs.

Product Specifications
Max. width: 1,500 mm
Thickness: 50μ to 150μ
Haze: 2-3



*Colored items

CPP film can be manufactured from colored material (black, blue, red, green, yellow, gray, light grey, etc.).
(Raw material used is 5t or above.) Contact us for information about other colors.

Polypropylene Shrink Wrap

An excellent product that can be used in many different ways.



Tightly wraps products, taking advantage of the special properties of the film itself through our development of unique technologies.

Polypropylene Shrink Wrap: Features

1. Increases commercial value

Makes packaged goods attractive with its high degree of transparency and glossy finish?an excellent choice for displays.

2. Well-suited for machines

Can be used in thin film thanks to its high overall strength and sealing strength. Excellent cold resistance and moisture-proof properties.

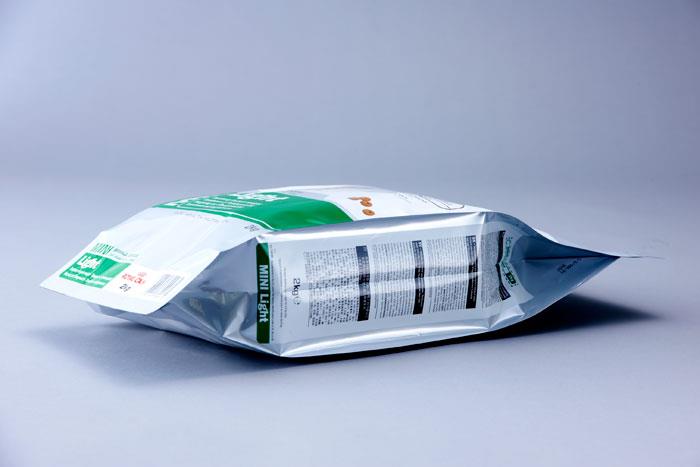

Side Gusset Flat Opening Bags can be used with regular automatic filling machines.

Features

  • Approximately 1.5 times or more of the internal capacity than three-sided bags, minimizes the bag's external dimensions and requires less display space.
  • Spout application is easier than conventional bags.

Slide-Rite

Our Slide-Rite packaging satisfies market demand for a “simpler, more convenient, safer” solution. It is an eco-friendly product that can be reused even after the contents have been consumed, with various seal-opening features added and a slider zipper that allows the bag to be reliably opened and closed.

Features

  1. Easy, secure opening and closing of bag?especially effective for bags with wide openings.
  2. Various tamper-proof features ensure a high level of safety.
  3. End clip feature added to keep the slider from going too far.
  4. Can be adapted to various bag formats, including three-side-seal bags, stand-up bags and side gusset bags.
  5. A "Particle Plow" slider is also available, which clears away particles stuck in the track when the bag is opened or closed.

Tear-Rite

Tear-Rite is a feature that allows bags to be opened easily in a clean straight line.

Features

  1. Scissors are no longer necessary thanks to the Tear notches.
  2. Neatly torn open in a straight line, a convenient addition to zipper bags that are repeatedly opened and closed.
