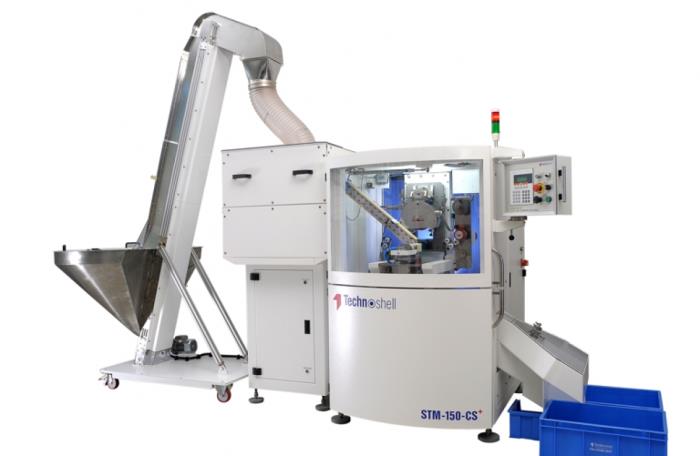

The ultimate machine to apply hot foil stamped bands on oval, round, and other closures of different shapes. This ultra high speed machine which works upto 90 caps per minute is a work horse for the large volume production set-ups.

Technical Specifications:

1. Max article size: 100mm dia
2. Oval ratio: 2:1 (max dia : min dia)
3. Stamping width: 40mm max
4. Cap length: upto 50mm
5. Speed of stamping: upto 90 parts/min
6. Air supply: 7kg/sq.cm
7. Air consumption: 40cfm
8. Power: 3kW, single phase, 230V AC, 50 Hz
9. Foil width: 7mm - 50mm
10. Weight: 800 kgs
11. Standard diamentions: 1600mm*1400mm*1800mm

Features and Benefits:

• Highly versatile machine - adaptable to various convex shapes for stamping
• Ultra high speed operation - increased productivity
• Easy setup and operation - single set of tooling
• Offers upto 30% foil saving - machine can work with narrow foil width
• Offers an ease of parameter setting - on account of state-of-the-art touch screen panel

Optional Attachments:

• Automatic part loading system
• Noise reduction enclosure for bowl feeder
• Counting and diverting arrangement - Reduce your dependance for 100% inspection
• End of foil roll - Bring down rejection and eliminate piece inspection
• Cap elevator to feed caps on the bowl feeder - Ensure the machine dosen't starve for caps
• Heat transfer attachment - Cater to innovative market demand
• Confirmity to CE norms
