    Container Labelling Machine CL-20.2

    Quick ContactPrint
    Container Labelling Machine CL-20.2

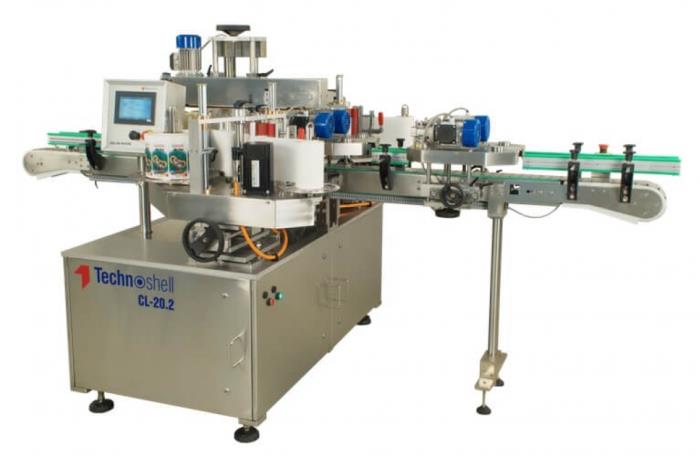

    The CL-20.2 is a container labelling machine that has been designed for front and back labelling of flat shaped containers, and is suitable for pharmaceutical applications.

    Technical Specifications:

    1. Label Dispensing Speed: 20 metres/min
    2. Accuracy: Label positional accuracy of ±1mm
    3. Max part height: 300mm (height) x 200mm (width)
    4. Min part height: 50mm
    5. Max label: 250mm (height)
    6. Min label: 30mm (height)

    Features:

    • Rigid frame construction
    • Very easy to operate
    • Low changeover time
    • Designed for 20m/minute label dispensing speed
    • Label positional accuracy of ±1mm
    • Synchronised speed of all motions
    • Servo driven labelling heads
    • Spacing and centering units with opposed side belts
    • Slat conveyor with stainless steel structure
    • Upper top hold belt to make products stable
    • All adjustments are provided with scale
    • Touch screen operator interface adjustable for height
    • Recipes facility
    • Fully enclosed control cabinet

     Optionals:

    • Option for different languages
    • Label break sensor
    • Remote Diagnostics
    • Password and user log facility
