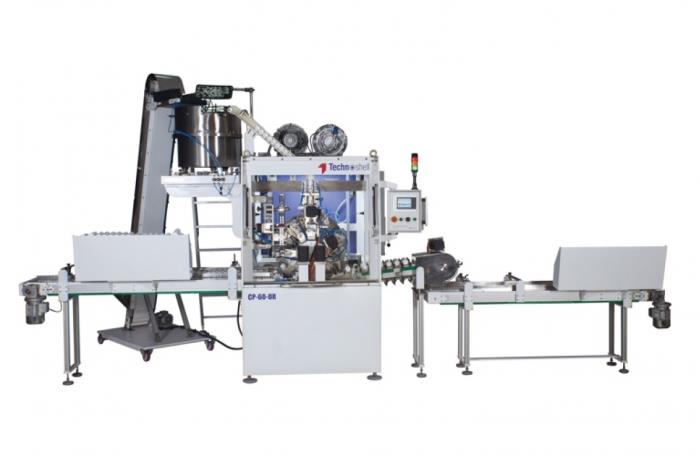

High Speed, Highly Accurate Capping Machine to Fix Screw-on Caps and Oriented Snap-On Caps on Plastic Cosmetic Tubes. This high speed, highly precise capping machine which works upto 80 tubes per minute is suitable for fixing Snap-on caps on tubes with servo driven orientation & Screw-on caps with servo controlled torque tightening mechanism.
Machine Description:
The 12 mandrel turret of the CP-60+ is indexed by a servo motor and the functions performed at various stations are:
- 2 stations for tube loading on the mandrel.
- 2 stations for Top sealing (optional)
- Screw-on capping
- Snap-on capping with tube and cap orientation (optional)
- Screw cap tightning with pre-settablw controlled torque
- Tube unloading from the mandrel on to out-feed conveyor with GOOD TUBE / BAD TUBE selection
- Tube feeding to the first station is done via in-feed belt conveyor. This conveyor can be integrated with our 'Tube feeder' unit for auto feeding of tubes.
- Cap feeding is done by a vibratory bowl feeder. The cap feeding arrangement when coupled with our cap elevator ensures the machine dosent starve for caps.
Technical Specifications:
- Speed: snap-on capping - Upto 75 tubes per min / Screw-on capping - Upto 75 tubes per min / Mechanical speed - upto 90 tubes per min
- Tube diameter: 19mm to 60mm
- Tube length: 75mm to 200mm
- Positioning accuracy of flip top cap and print mark position on the tube (optional): +/- 2mm
- Torque tightening accuracy in case of Screw-on caps: +/- 2 kg.cm
- Torque tightening range: From 5 kg.cm to 20 kg.cm
- Electric connection: 3 x 415 volt AC, 50 Hz, 14 kW
- Pneumatic connection: 6.5 to 8 bar. Dust, water and oil free
- Memory for program storage: upto 500 recipes
- Operations: fully automatic
- Machine dimention: 4400mm x 2200mm x 2500mm
- Standard colour: Combinaiton of RAL 9016 white and blue
- Layout: Tube flow from left to right
Features and Benefits:
- Surveillance and maintenance- Minimum down-time
- Operator Friendly and simplicity - Ease of operation
- Accurate and flexible - Always meet customer demand
- Sorting "Good tubes / Bad tubes" - Get rid of improper capping complaints
- Quick Change-over and Easy Settings- 'Small batch size - Not a problem anymore'
Applications:
- Tube Sealing
- Snap-On capping
- Screw-on capping
Optonal Attachments:
- Top sealing attachment
- Snap-On capping
- Vertical out feed conveyor medem
- Cap Elevator- For auto feeding of caps on to vibratory bowl feeder
- Tube Feeder- For auto feeding of the tubes to the in-feed conveyor
- Tube Packer- For auto filling of tubes in the bulk packing cartons
